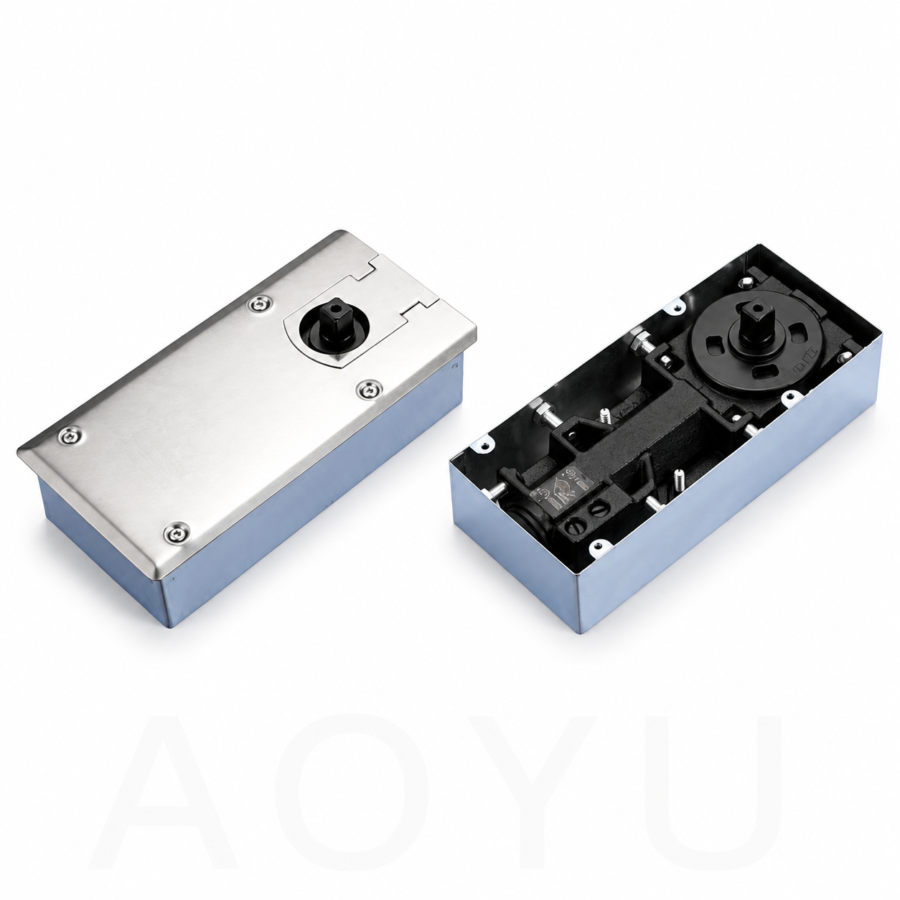

Heavy-Duty Floor Spring

The Heavy-Duty Floor Spring is designed for commercial and architectural glass doors requiring stable operation, adjustable installation and controlled closing.

This floor spring supports 10–12 mm tempered glass doors. For proper selection, AOYU recommends a maximum door weight of 90 kg and a maximum door width of 850 mm.

The floor spring features two-stage closing speed adjustment, a 90° hold-open option, maximum opening up to 130°, and multi-direction adjustment of up to 6mm for easier installation and door alignment.

It is suitable for office buildings, commercial properties, apartments, hotels and other frequently used glass door applications.

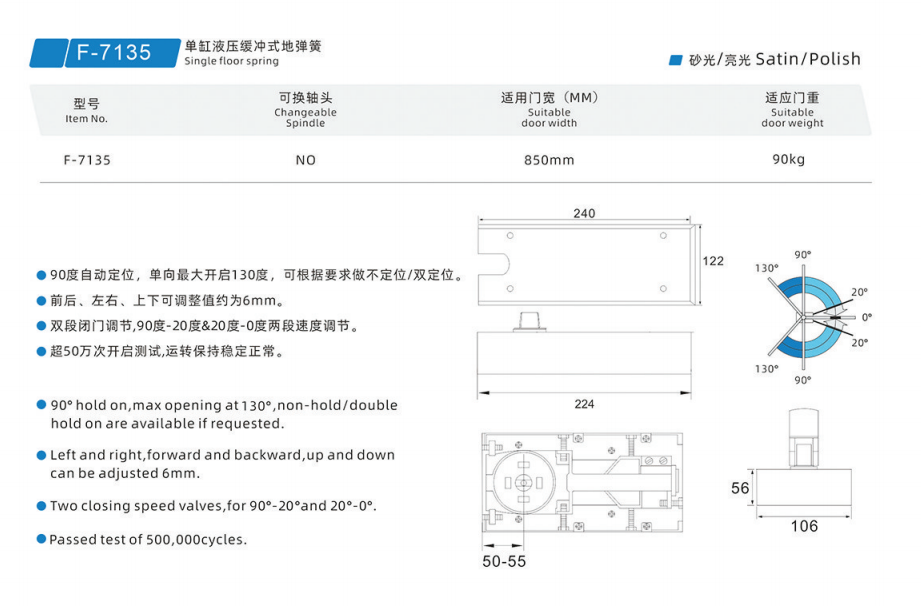

Product Specifications

Specification	Details
Product Name	Heavy-Duty Floor Spring
Product Type	Glass Door Floor Spring / Concealed Door Closer
Suitable Glass Thickness	10–12mm Tempered Glass
Suitable Door Weight	Up to 90kg
Suitable Door Width	Up to 850mm
Hold-Open Angle	90°
Maximum Opening Angle	130°
Non-Hold Open Version	Available
Double Hold-Open Version	Available on Request
Closing Speed Stage 1	90°–20°
Closing Speed Stage 2	20°–0°
Closing Speed Control	Two Adjustable Valves
Horizontal Adjustment	Up to 6mm
Forward / Backward Adjustment	Up to 6mm
Vertical Adjustment	Up to 6mm
Tested Life	500,000 Cycles
Changeable Spindle	No
Application	Offices / Hotels / Apartments / Commercial Buildings
Door Type	Glass Doors

90kg Heavy-Duty Door Capacity

This heavy duty floor spring is suitable for glass doors weighing up to:

90kg

Recommended maximum door width:

850mm

This floor spring supports 10–12 mm tempered glass doors in various commercial applications. In addition, it provides controlled and reliable door closing.

Before installation, installers should verify the actual door weight, width, and glass configuration to ensure proper compatibility.

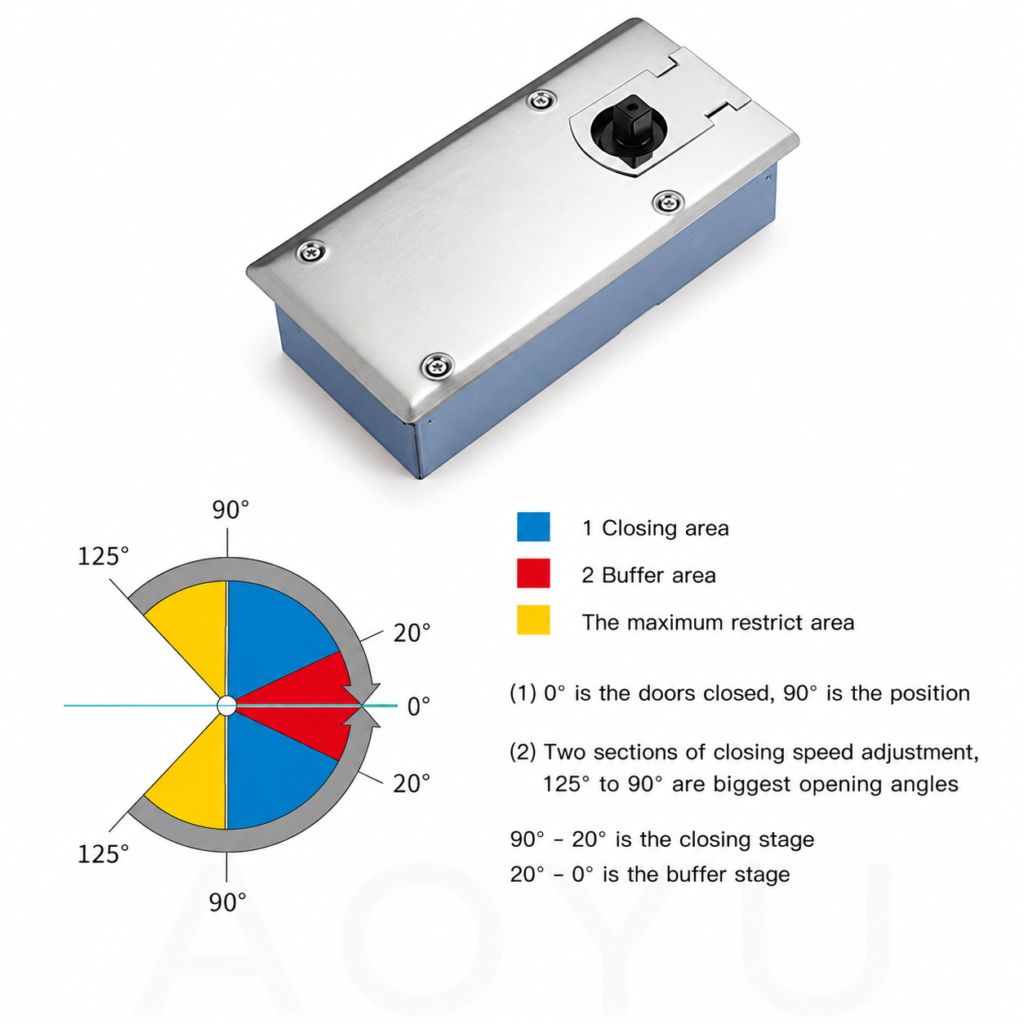

Two-Stage Adjustable Closing Speed

The floor spring uses two separate valves to control the door closing action.

Main Closing Speed: 90°–20°

The first valve controls the main closing movement from approximately 90° to 20°.

Latching Speed: 20°–0°

The second valve controls the final closing movement from approximately 20° to 0°.

This allows installers to adjust the main closing speed and final latching speed independently.

90° Hold-Open Function

The standard hold-open position is:

90°

When the door reaches the designated hold-open angle, it can remain open when required.

AOYU also offers a non-hold-open version. In addition, customers can request other hold-open configurations according to their project requirements.

Maximum Opening Up to 130°

The maximum door opening angle is approximately:

130°

This provides a wide opening range for commercial entrances and interior glass doors.

Before installation, installers should check the surrounding glass panels, wall, and hardware layout to ensure sufficient opening clearance.

6mm Multi-Directional Adjustment

One of the important installation advantages of this floor spring is its adjustment range.

Installers can adjust the door position in multiple directions, including:

• Left and right
• Forward and backward
• Up and down

The adjustment range is up to 6mm, helping installers fine-tune door alignment during installation.

This is particularly useful when the floor box or door position requires minor correction.

Tested to 500,000 Cycles

The floor spring has passed a durability test of:

500,000 opening and closing cycles

This makes it suitable for many commercial and residential glass door applications with frequent daily operation.

Typical applications include:

• Commercial office buildings
• Offices
• Hotels
• Apartments
• Retail spaces
• Interior glass doors
• Commercial glass entrances

Suitable for 10–12mm Tempered Glass

The floor spring can be used with:

10mm tempered glass
12mm tempered glass

This glass thickness range is commonly used in frameless commercial glass door systems.

Final glass dimensions, door weight and hardware configuration should be confirmed before glass processing and installation.

Non-Handed Glass Door Application

The floor spring can be used in common glass door configurations where flexible door alignment and double-action operation are required.

Its concealed floor installation helps maintain a clean appearance around the glass entrance while keeping the main closing mechanism below floor level.
