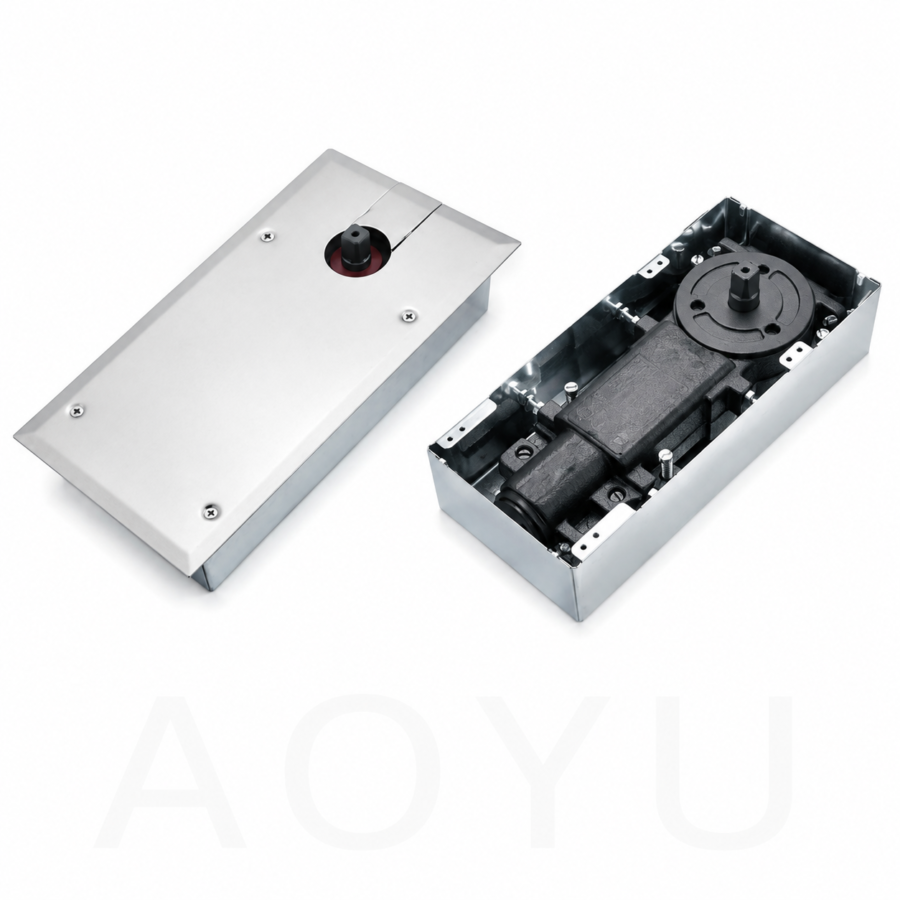

Hydraulic Floor Spring

The Hydraulic Floor Spring is a heavy-duty concealed door-closing solution designed for large commercial and architectural glass doors requiring controlled closing and reliable operation.

This model supports door panels weighing up to 150kg with a recommended maximum door width of 1300mm. It is suitable for 10–12mm tempered glass doors and provides a maximum opening angle of approximately 130°.

The hydraulic mechanism features two independently adjustable closing-speed valves, allowing separate control from 90°–20° and 20°–0°.

For easier installation and door alignment, the mechanism can be adjusted left and right, forward and backward, and up and down by up to 6mm.

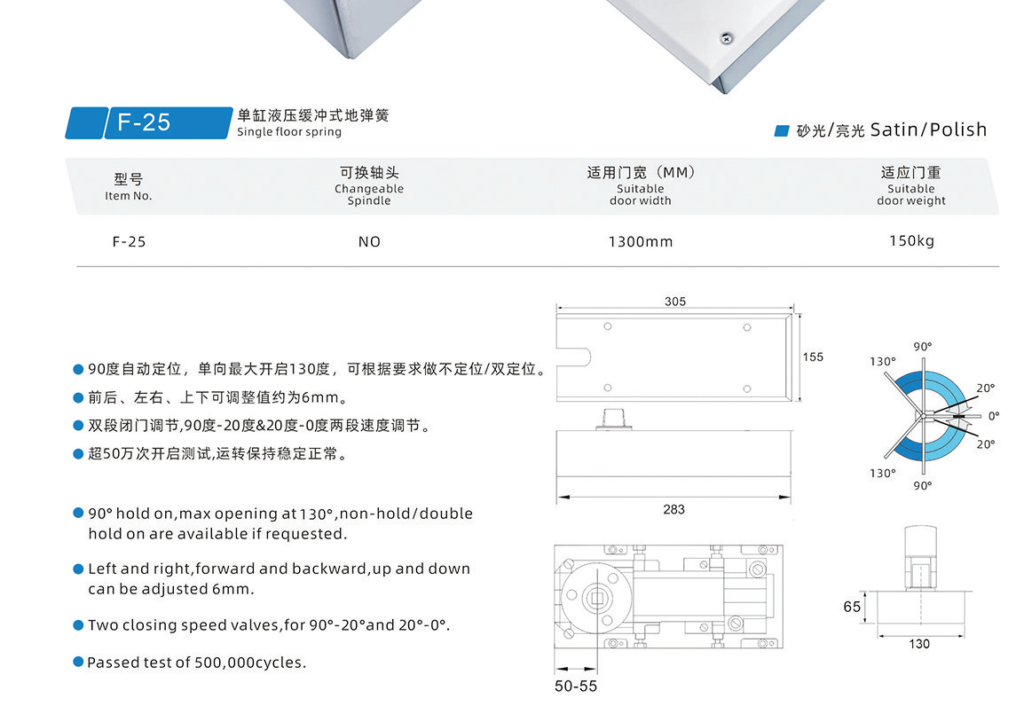

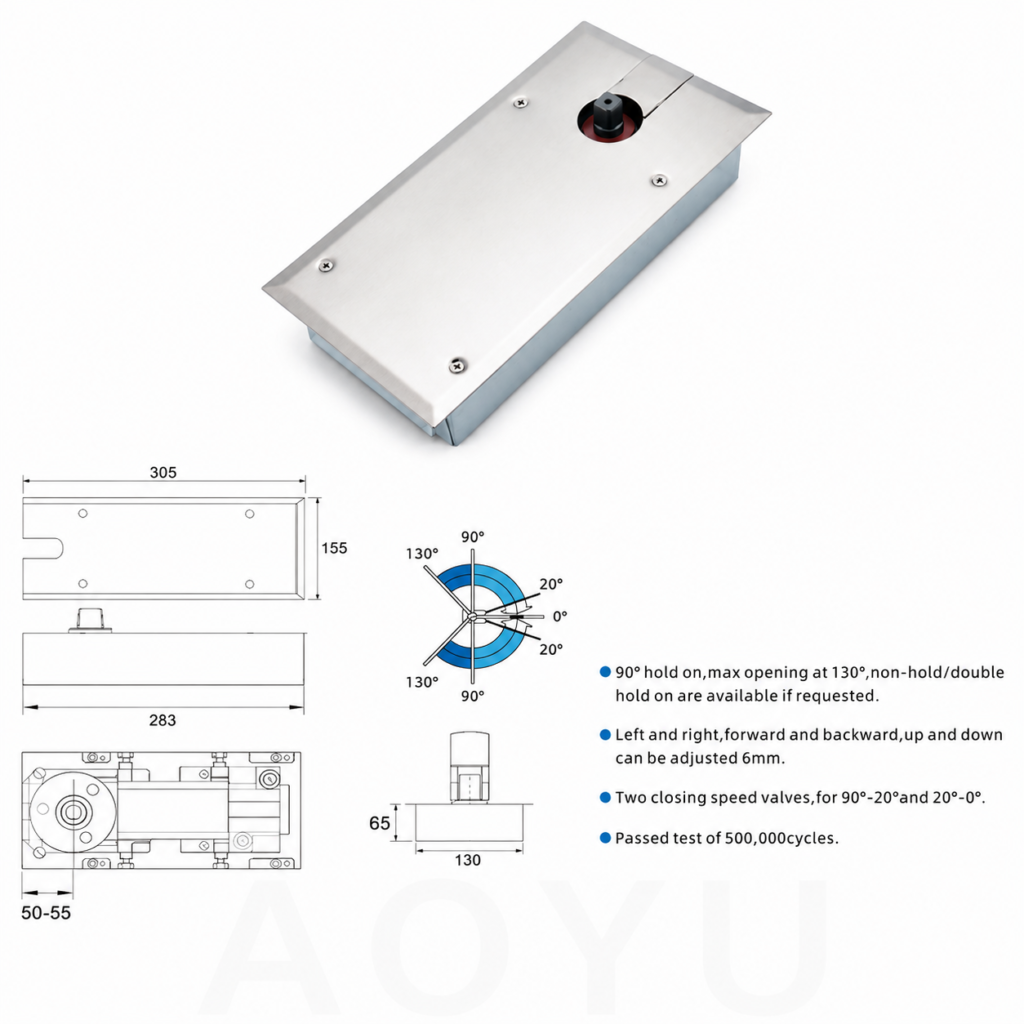

Product Specifications

Specification	Details
Product Name	Hydraulic Floor Spring
Product Type	Hydraulic Floor Spring / Concealed Floor Door Closer
Suitable Glass Thickness	10–12mm Tempered Glass
Suitable Door Weight	Up to 150kg
Suitable Door Width	Up to 1300mm
Hold-Open Angle	90°
Maximum Opening Angle	130°
Non-Hold Open Version	Available
Double Hold-Open Version	Available on Request
Closing Speed Stage 1	90°–20°
Closing Speed Stage 2	20°–0°
Speed Control	Two Adjustable Hydraulic Valves
Left / Right Adjustment	Up to 6mm
Forward / Backward Adjustment	Up to 6mm
Vertical Adjustment	Up to 6mm
Durability Test	500,000 Cycles
Changeable Spindle	No
Application	Offices / Hotels / Apartments / Commercial Buildings
Door Type	Glass Doors

150kg Heavy-Duty Door Capacity

This hydraulic floor spring is designed for larger and heavier glass doors.

Maximum recommended door weight:

150kg

Maximum recommended door width:

1300mm

The higher load capacity makes this model suitable for larger commercial glass entrances where standard light-duty floor springs may not provide sufficient capacity.

The actual door dimensions, weight and hardware configuration should always be confirmed before installation.

Two-Stage Hydraulic Closing Speed

The hydraulic floor spring provides two separate speed-control valves.

Main Closing Speed: 90°–20°

The first hydraulic valve controls the main closing movement of the door between approximately 90° and 20°.

Latching Speed: 20°–0°

The second valve controls the final closing stage from approximately 20° to 0°.

Independent adjustment allows installers to fine-tune the closing action according to the door weight and application.

90° Hold-Open Function

The standard hold-open position is:

90°

This allows the door to remain open when required.

A non-hold-open version can also be supplied, while alternative or double hold-open configurations are available according to project requirements.

Maximum Opening Angle of 130°

The maximum door opening angle is approximately:

130°

This wider opening range makes the floor spring suitable for commercial entrances where a larger passage area may be required.

Before installation, surrounding walls, fixed glass panels and other hardware should be checked to ensure sufficient clearance.

6mm Multi-Directional Adjustment

The floor spring provides multiple installation adjustments.

The mechanism can be adjusted:

• Left and right
• Forward and backward
• Up and down

The available adjustment range is up to 6mm.

This helps installers fine-tune the glass door position and compensate for minor installation differences during final alignment.

Tested to 500,000 Cycles

The hydraulic floor spring has passed a durability test of:

500,000 opening and closing cycles

This makes it suitable for many frequently used glass door applications in commercial and residential environments.

Typical applications include:

• Commercial office buildings
• Office entrances
• Hotels
• Apartments
• Retail stores
• Shopping areas
• Interior glass doors
• Commercial glass entrances

Suitable for 10–12mm Tempered Glass

The floor spring can be used with:

10mm tempered glass
12mm tempered glass

This range is suitable for many frameless architectural glass door systems.

Door weight, glass dimensions and installation layout should be confirmed before the glass is processed.

Concealed Hydraulic Door Control

The hydraulic closing mechanism is installed below floor level, helping maintain a clean appearance around the glass entrance.

This makes the product suitable for architectural projects where both door performance and visual appearance are important.
