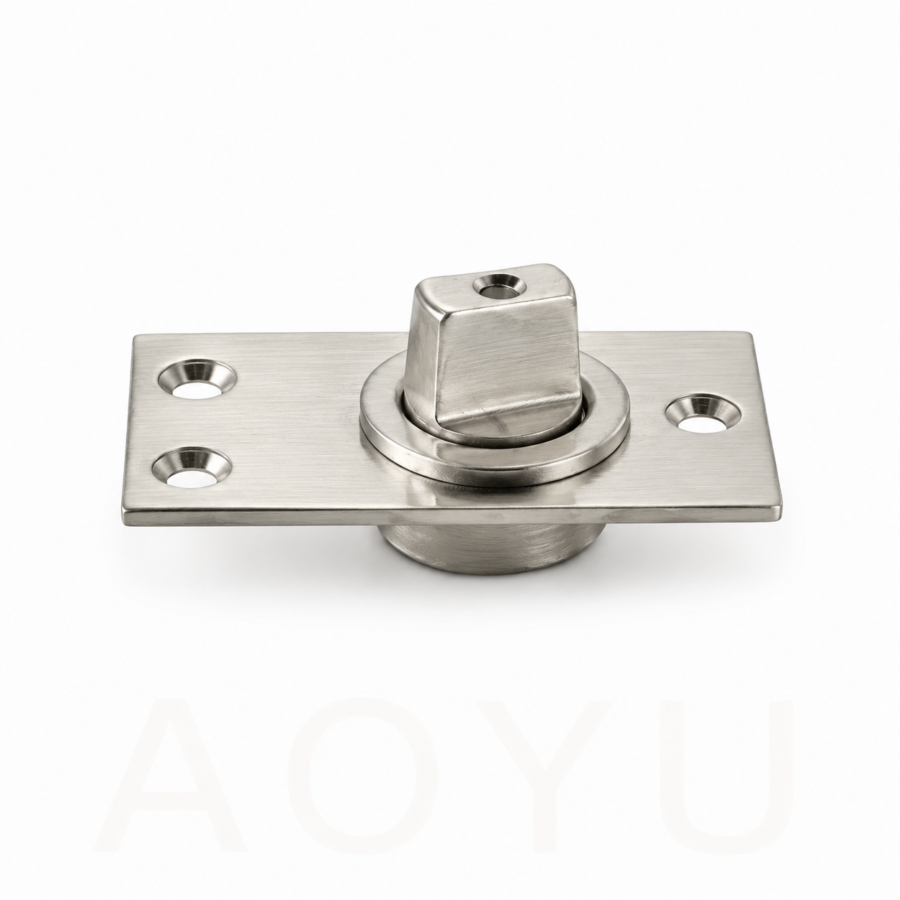

Floor-Mount Adjustable Double-Action Pivot Hinge
The Floor-Mount Adjustable Double-Action Pivot Hinge is designed for door systems that require smooth two-way opening and a compact floor-mounted pivot structure. This hinge supports door weights of up to 80kg and is suitable for a wide range of applications, including wooden doors, framed glass doors, stainless steel doors, office doors and residential interior doors. The hinge […]
Certifications
The Floor-Mount Adjustable Double-Action Pivot Hinge is designed for door systems that require smooth two-way opening and a compact floor-mounted pivot structure.
This hinge supports door weights of up to 80kg and is suitable for a wide range of applications, including wooden doors, framed glass doors, stainless steel doors, office doors and residential interior doors.
The hinge uses a mortised installation design, meaning a slot or recess is required during installation. It does not include a hold-open positioning function and does not use a spring-assisted return mechanism.
Product Specifications
| Specification | Details |
| Product Name | Floor-Mount Adjustable Double-Action Pivot Hinge |
| Product Type | Double-Action Pivot Hinge |
| Installation Type | Floor-Mount |
| Installation Method | Mortised / Recessed Installation |
| Groove Required | Yes |
| Maximum Door Weight | Up to 80kg |
| Double-Action Opening | Yes |
| Hold-Open Function | No |
| Spring-Assisted Function | No |
| Adjustment | Adjustable |
| Suitable Door Types | Wooden / Framed Glass / Stainless Steel Doors |
| Application | Office / Residential / Commercial Interior Doors |
Double-Action Opening
The hinge is designed for double-action door operation, allowing compatible doors to swing in both directions.
This makes it suitable for locations where users need to pass through the doorway from either side without relying on a conventional one-direction hinge.
Typical applications include:
- Office doors
- Residential interior doors
- Wooden doors
- Framed glass doors
- Stainless steel doors
- Commercial interior doors
Supports Doors Up to 80kg
The double action pivot hinge is suitable for door panels weighing up to:
80kg
Before installation, the actual door weight, dimensions and door material should be confirmed to ensure the hinge is suitable for the application.

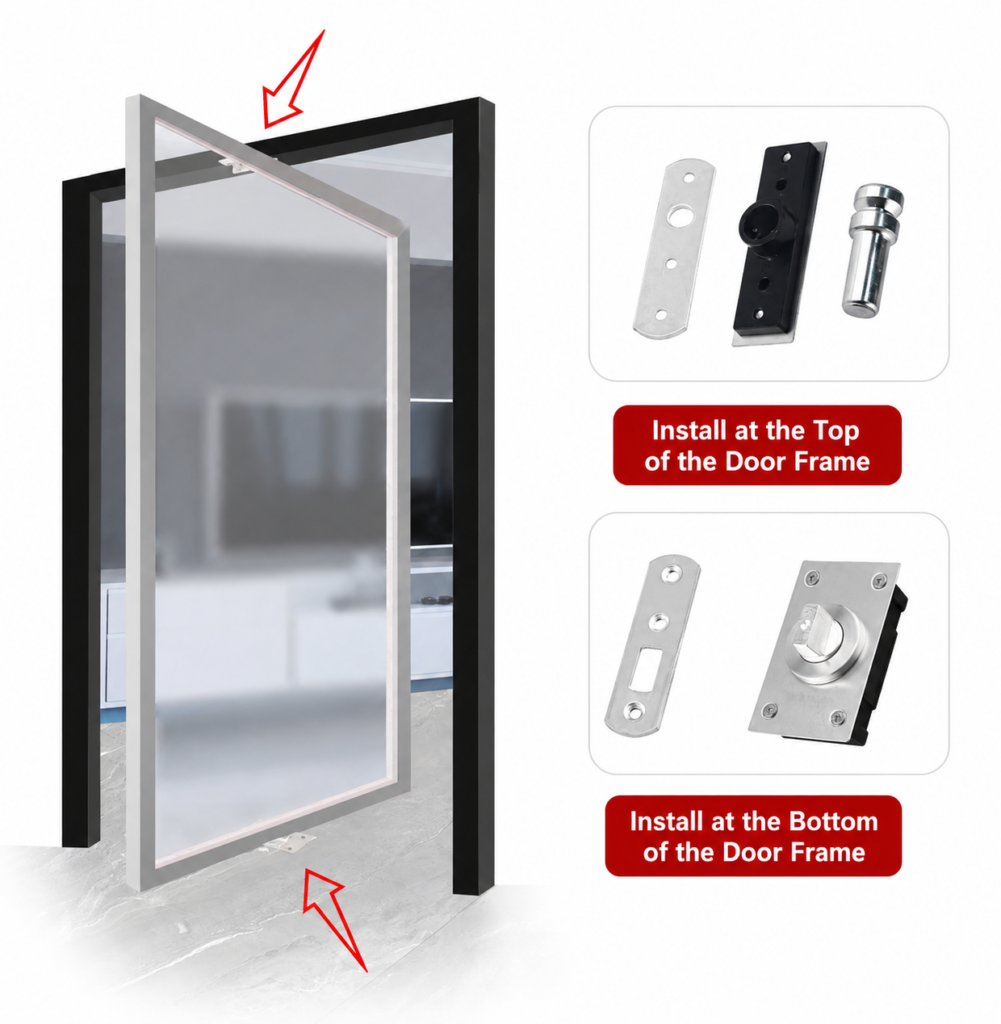

Mortised Floor-Mount Installation
This model requires a mortised installation, meaning the floor or mounting area needs to be prepared with a suitable recess or groove.
A properly prepared installation position helps ensure the pivot hinge is securely fitted and correctly aligned with the door.
Because the hinge is installed at floor level, the overall appearance remains relatively clean and unobtrusive.
Adjustable Pivot Design
The hinge includes an adjustable design that allows installers to make minor positioning adjustments during installation.
This helps with door alignment and can make installation more flexible when working with different door materials and structures.
Non-Hold-Open Design
This model does not include a positioning or hold-open function.
The door will not remain locked at a preset opening angle through the hinge itself.
This makes it suitable for applications where free two-way movement is preferred.
No Spring-Assisted Return
The hinge does not include an internal spring-return function.
Therefore, it should not be treated as a self-closing floor spring or hydraulic door closer.
Its primary function is to provide a floor-mounted pivot point for double-action door movement.
Multiple Door Applications
The pivot hinge can be used with:
Wooden Doors
Suitable for office, residential and commercial interior applications.
Framed Glass Doors
Suitable for glass doors using a supporting frame structure.
Stainless Steel Doors
Can be applied to suitable metal door systems.
Office and Residential Doors
Its compact pivot structure makes it suitable for different interior door designs.
Frequently Asked Questions
1. What is a Floor-Mount Adjustable Double-Action Pivot Hinge used for?
It creates a floor-mounted pivot point for swing doors that need to open in both directions. It is suitable for selected glass, wooden, stainless steel and framed door applications where a simple mechanical pivot system is required.
2. Does this double-action pivot hinge have a self-closing or spring function?
No. This model has no spring assistance, hydraulic damping or automatic self-closing function. The hinge mainly provides the pivot and rotational support for the door.
3. How much door weight can this floor-mount pivot hinge support?
This model can support doors weighing up to approximately 80kg, subject to door width, height, installation structure and fixing conditions. For larger doors, the complete door dimensions should be confirmed before selection.
4. Can the door position be adjusted after installation?
Yes. The adjustable structure allows installers to make positioning corrections during installation so the door can align more accurately with the opening and pivot axis.
5. What types of doors can use this adjustable double-action pivot hinge?
It can be used with suitable framed glass doors, wooden doors, stainless steel doors and other swing door systems. In addition, it works well in offices, apartments and residential interiors where double-direction door movement is required.
