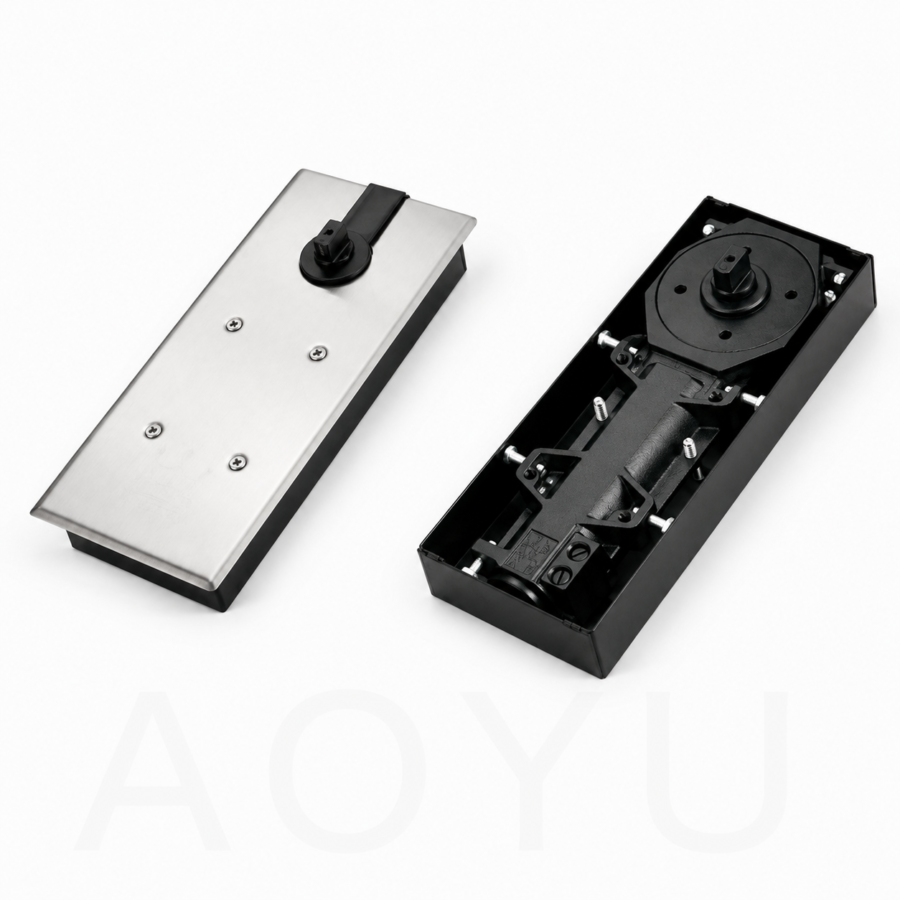

Glass Door Floor Spring

The Glass Door Floor Spring is designed for glass door systems requiring controlled closing, double-action opening and reliable operation in commercial and architectural applications.

This model supports doors weighing up to 120kg and a maximum door width of 1100mm. It features two-stage adjustable closing speed, 90° and 135° hold-open positions, horizontal adjustment and a maximum opening angle of 135°.

The main body is manufactured from cast iron and is designed for a service life of up to 5,000,000 opening and closing cycles, making it suitable for frequently used glass doors in commercial environments.

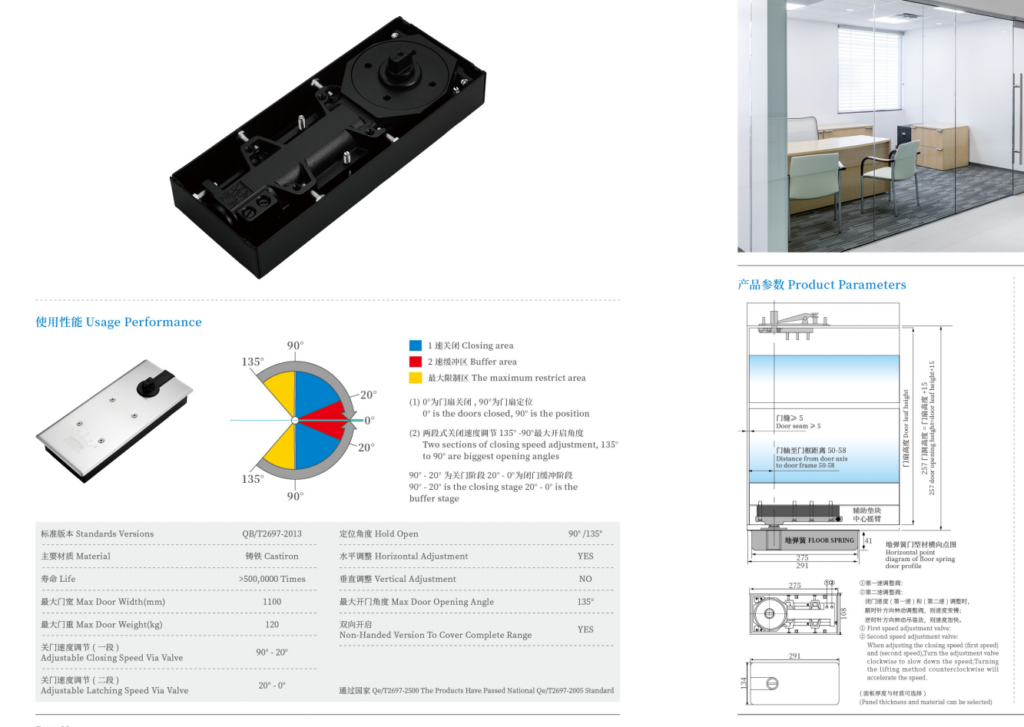

Product Specifications

Specification	Details
Product Name	Glass Door Floor Spring
Product Type	Floor Spring / Concealed Floor Door Closer
Main Material	Cast Iron
Maximum Door Weight	120kg
Maximum Door Width	1100mm
Service Life	Up to 5,000,000 Cycles
Closing Speed Adjustment	90°–20°
Latching Speed Adjustment	20°–0°
Speed Control	Adjustable Via Valve
Hold-Open Angle	90° / 135°
Maximum Opening Angle	135°
Double-Action Opening	Yes
Horizontal Adjustment	Yes
Vertical Adjustment	No
Non-Handed Design	Yes
Left / Right Door Application	Universal

120kg Door Capacity

This glass door floor spring is designed to support doors weighing up to:

120kg

The recommended maximum door width is:

1100mm

This capacity makes the floor spring suitable for many commercial glass door applications where a stronger concealed closing mechanism is required.

Door weight, width and installation conditions should be confirmed before installation.

Up to 5,000,000 Opening Cycles

The floor spring is designed for a service life of up to 5,000,000 opening and closing cycles.

This makes it suitable for frequently operated doors in locations such as:

• Hotels
• Shopping malls
• Office buildings
• Retail stores
• Commercial entrances
• Interior glass door systems

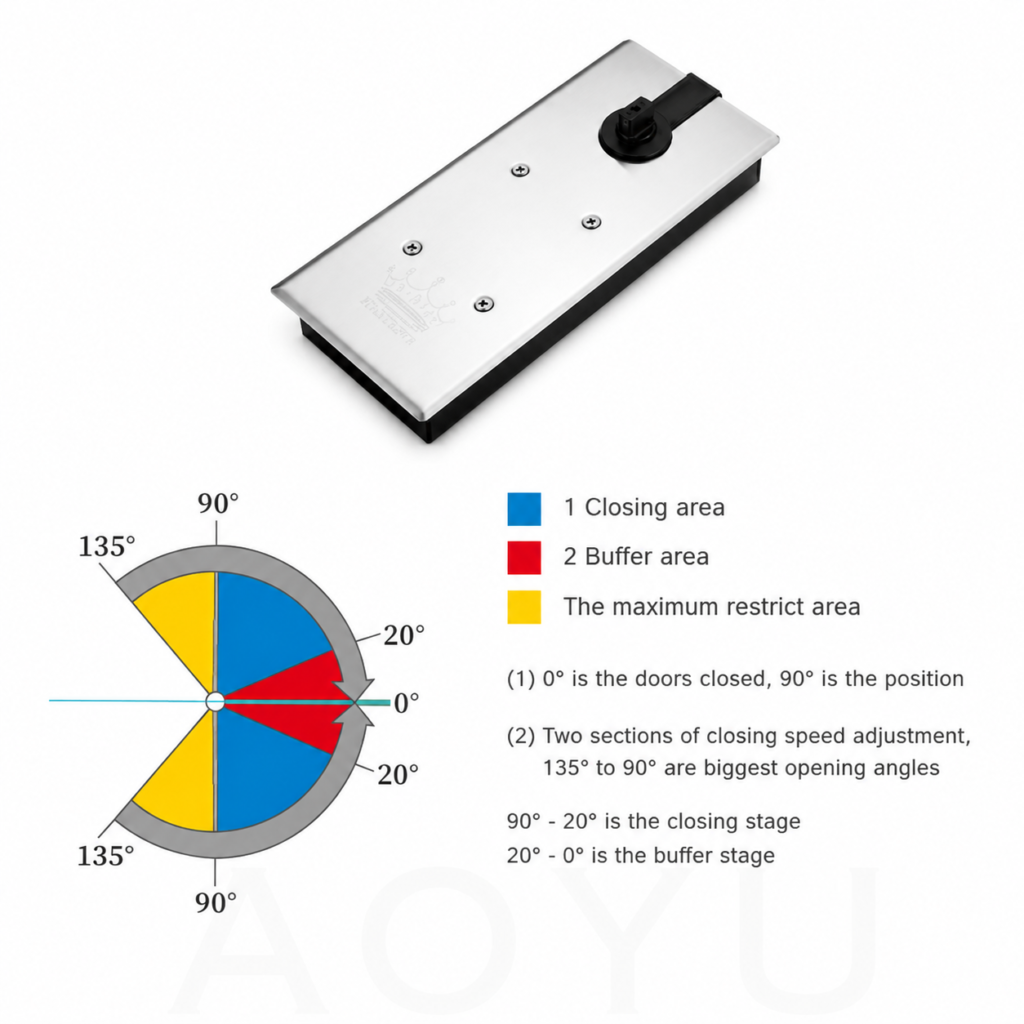

Two-Stage Adjustable Closing Speed

The floor spring provides two separate closing stages for better door control.

Closing Speed: 90°–20°

The first adjustment valve controls the main door closing movement from approximately 90° to 20°.

Installers can adjust the closing speed according to the door size and operating requirements.

Latching Speed: 20°–0°

The second valve controls the final closing movement from approximately 20° to 0°.

Independent latching-speed adjustment allows smoother control during the final stage of closing.

90° and 135° Hold-Open

The floor spring provides two hold-open positions:

90° / 135°

The door can remain open at these preset angles when required, making the system convenient for locations with periods of high pedestrian traffic or goods movement.

Maximum 135° Opening

The maximum door opening angle is:

135°

This provides a wide opening range for suitable glass door installations.

The surrounding wall, glass panels and hardware layout should be checked before installation to ensure sufficient clearance.

Double-Action Opening

The Glass Door Floor Spring supports double-action operation, allowing a compatible glass door to open in both directions.

This is particularly useful for commercial entrances and other locations with two-way pedestrian traffic.

Non-Handed Universal Design

The non-handed design allows the floor spring to be used for both left-opening and right-opening door configurations.

This simplifies installation, product selection and stock management for distributors and glass hardware suppliers.

Horizontal Adjustment

The floor spring supports:

Horizontal Adjustment: Yes

This allows installers to make positioning adjustments during door alignment.

Vertical Adjustment: No

Correct installation depth and floor preparation should therefore be confirmed before installation.

Cast Iron Main Body

The main body is manufactured from cast iron, providing the strength required for repeated operation and supporting doors weighing up to 120kg.

Because the main mechanism is installed below floor level, the system maintains a clean appearance around the glass door.
