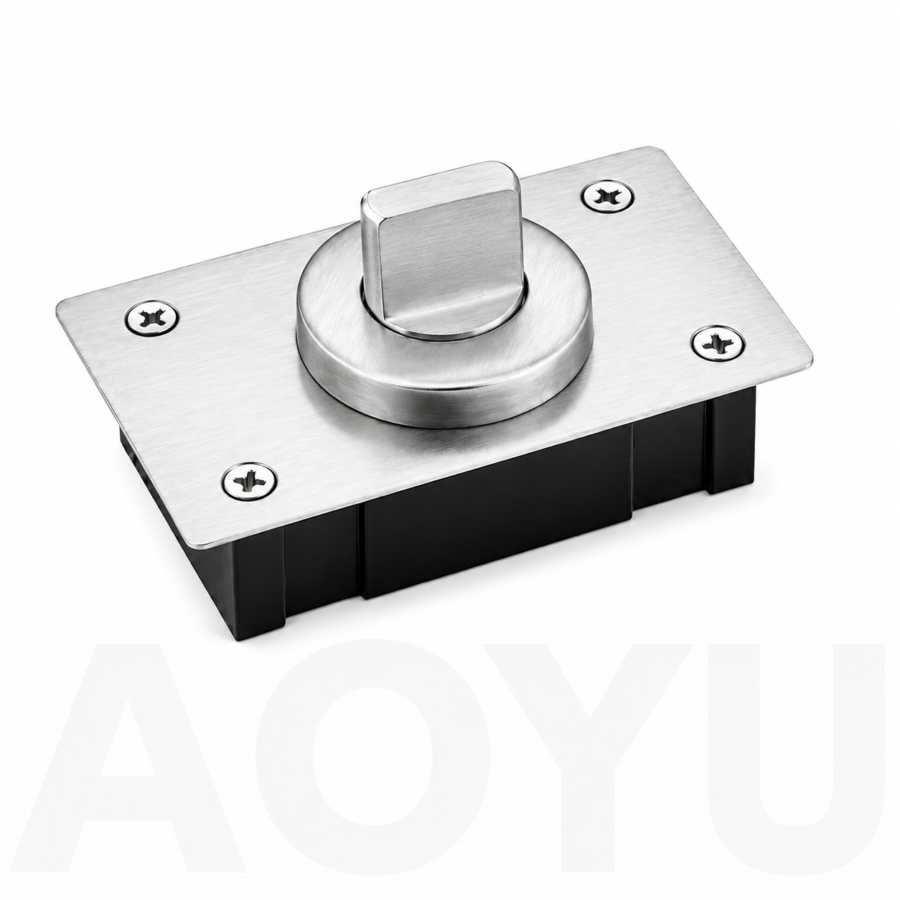

Stainless Steel Glass Door Pivot Patch Fitting System
The Stainless Steel Glass Door Pivot Patch Fitting System is designed for modern pivot, swing and rotating door applications requiring a durable and flexible door hardware solution. The system uses a floor pivot structure and is suitable for 10–12mm glass doors, with a maximum recommended glass door weight of 100kg. It features a 90° hold-open function and supports […]
Certifications
The Stainless Steel Glass Door Pivot Patch Fitting System is designed for modern pivot, swing and rotating door applications requiring a durable and flexible door hardware solution.
The system uses a floor pivot structure and is suitable for 10–12mm glass doors, with a maximum recommended glass door weight of 100kg.
It features a 90° hold-open function and supports 360° rotation, allowing the door to remain open at 90 degrees when required while also providing a wide rotational range for suitable pivot door applications.
The core structure is manufactured from stainless steel, providing good strength, durability and corrosion resistance for commercial and architectural door systems.
Customization and OEM/ODM services are available according to different door structures, dimensions and project requirements.
Product Specifications
| Specification | Details |
| Product Name | Stainless Steel Glass Door Pivot Patch Fitting System |
| Product Type | Pivot Patch Fitting System |
| Pivot Type | Floor Pivot |
| Core Material | Stainless Steel |
| Applicable Door Thickness | 10–12mm |
| Maximum Glass Door Weight | Up to 100kg |
| Hold-Open Position | 90° |
| Rotation Range | 360° |
| Door Type | Pivot / Swing / Rotating Door |
| Glass Door Application | Available |
| Wooden Door Application | Available |
| Aluminum Door Application | Available |
| Rotating Door Application | Available |
| Selected Revolving Door Application | Available |
| Customization | Available |
| OEM / ODM | Acceptable |
| Application | Commercial / Architectural Door Systems |
Floor Pivot Door System
This glass door pivot patch fitting system uses a floor pivot mechanism to support suitable pivot and swing door configurations.
Unlike conventional side-mounted hinges, the pivot system allows the door to rotate around a defined pivot point.
This design provides a clean and modern appearance, making it suitable for architectural glass doors, commercial entrances and interior door systems.
Suitable for 10–12mm Glass Doors
The system is suitable for:
10mm glass
12mm glass
For glass door applications, the final glass dimensions, hole positions and pivot locations should be confirmed before glass processing.
This is particularly important because tempered glass normally requires all drilling and machining to be completed before tempering.
Supports Glass Doors Up to 100kg
The pivot patch fitting system can support glass door panels weighing up to:
100kg
This makes it suitable for medium-to-heavy glass doors used in commercial and architectural environments.
Before installation, the actual glass dimensions, weight and pivot position should be confirmed to ensure the door remains within the recommended load range.
90° Hold-Open Function
The system features a 90° hold-open function.
When the door reaches approximately 90 degrees, it can remain open when required.
This function is useful in locations where doors may need to stay open temporarily, such as:
- Offices
- Hotels
- Retail stores
- Commercial buildings
- Shopping areas
- Interior glass entrances
360° Rotation
The pivot mechanism supports 360° rotation, providing flexible movement around the pivot point.
This feature makes the system suitable for selected rotating, pivot and architectural door applications where a wider rotational range is required.
The surrounding installation space should be confirmed before installation to ensure sufficient clearance for the door movement.
Stainless Steel Core
The main internal structure is manufactured from stainless steel.
The stainless steel core provides:
- Good structural strength
- Durability
- Corrosion resistance
- Reliable long-term operation
This makes the system suitable for many commercial and architectural door applications.
Multiple Door Applications
The pivot fitting system can be used with different door types, including:
- Glass doors
- Wooden doors
- Aluminum doors
- Pivot doors
- Swing doors
- Rotating doors
- Selected revolving door systems
Because different door materials require different fixing methods, the final hardware configuration should be confirmed according to the actual project.
Customization Available
Customization is available for different B2B and project requirements.
Custom options can include:
- Product dimensions
- Hardware configuration
- Surface finish
- Door application
- Packaging
- Branding
- OEM requirements
Customers can provide drawings, dimensions or project specifications before production.
OEM / ODM Support
OEM and ODM services are available for distributors, door manufacturers, glass processors and project contractors.
The hardware configuration can be adjusted according to the door material, thickness, dimensions and application requirements.
Frequently Asked Questions
1. What is a Stainless Steel Glass Door Pivot Patch Fitting System used for?

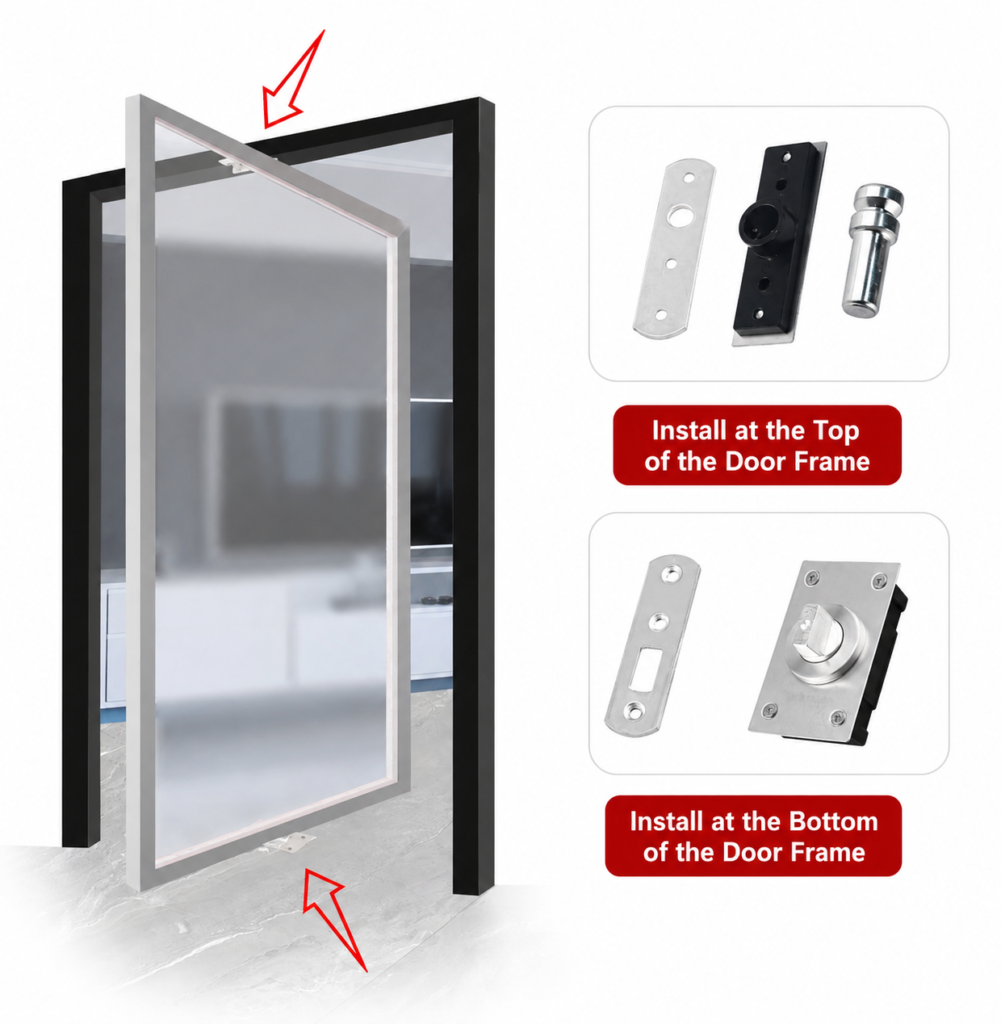

It forms a complete pivot connection for frameless glass doors, allowing the door to rotate around a top and bottom pivot point. The system is suitable for architectural glass entrances, offices, hotels and commercial door applications.
2. What glass thickness is suitable for this pivot patch fitting system?
The system is commonly suitable for 10–12mm tempered glass. Before production, installers should confirm the glass thickness, door dimensions and required cut-outs to ensure compatibility with the complete pivot hardware.
3. How much door weight can this pivot system support?
The system can support glass doors weighing up to approximately 100kg, depending on the door dimensions, pivot configuration and installation conditions. For larger doors, the complete system should be checked before hardware selection.
4. Does the Glass Door Pivot Patch Fitting System support 90° hold-open and 360° rotation?
Yes. The system can provide a 90° hold-open position and allow the door to rotate through a full 360° pivot movement when used in a compatible configuration.
5. Can this pivot patch fitting system be customized for different door projects?
Yes. Material, surface finish, dimensions and selected components can be customized for suitable project and OEM orders. In addition, customers can provide door drawings or installation requirements so the pivot configuration can be confirmed before production.
