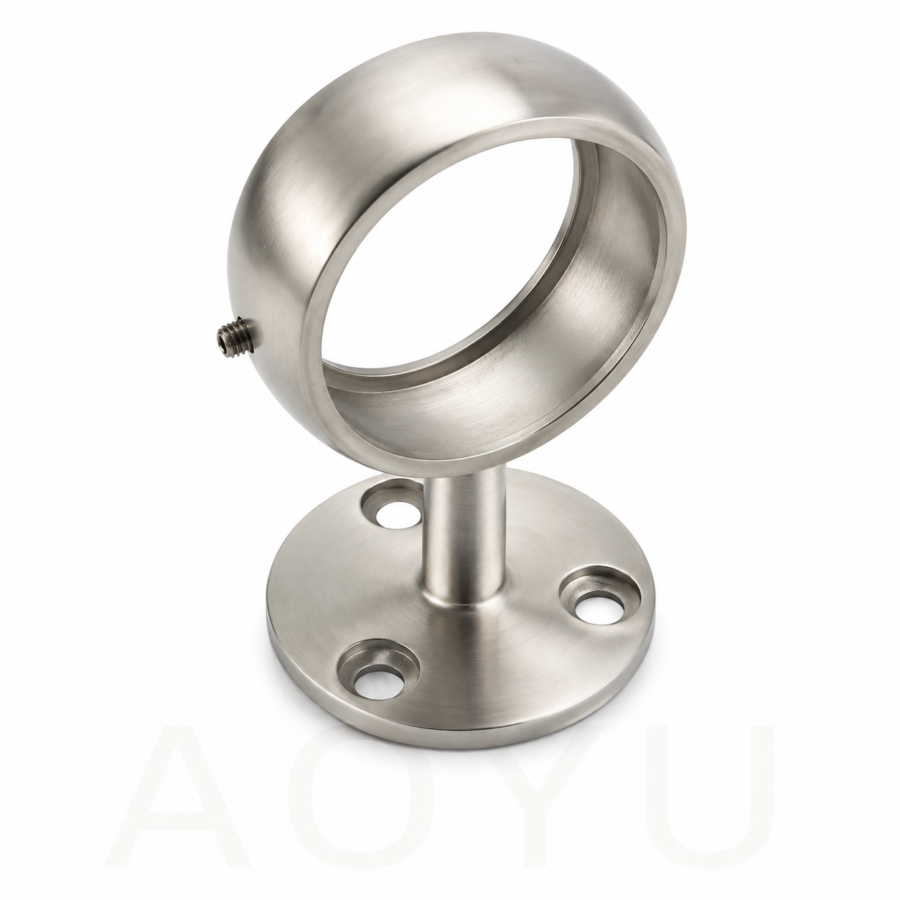

Through-Pipe Handrail Support Bracket

The Through-Pipe Handrail Support Bracket provides intermediate support for round tubular handrails. In addition, its stainless steel construction makes it suitable for architectural railing applications.

Unlike an end bracket, this fitting supports the middle section of a long tubular rail. As a result, it provides additional support and helps reduce bending or sagging over longer spans.

AOYU manufactures this bracket from SS304 stainless steel. In addition, it supports round tubes with diameters of 38 mm, 42.5 mm, and 50.8 mm.

For example, the bracket suits railing handrails, stair handrails, commercial bar foot rails, and other round-tube applications. Moreover, it can provide additional center support for selected wardrobe hanging rods and curtain rods.

Standard finishes include Brushed, Mirror, and Black. Additionally, AOYU offers other color options to meet specific project requirements.

Product Specifications

https://www.youtube.com/watch?v=40Ud_tLe3Ew

Specification	Details
Product Name	Through-Pipe Handrail Support Bracket
Product Type	Center / Intermediate Handrail Support
Material	SS304 Stainless Steel
Suitable Tube Diameter	38mm / 42.5mm / 50.8mm
Tube Type	Round Stainless Steel Tube
Installation Position	Center / Intermediate Support Position
Main Function	Load Support / Anti-Sag Support
Primary Application	Railings / Stair Handrails / Bar Foot Rails
Additional Applications	Wardrobe Rods / Curtain Rods
Finish	Brushed / Mirror / Black
Custom Colors	Available
Sample Dispatch	Within 3 Days
OEM / Customization	Available

Intermediate Support for Long Handrails

The main function of this handrail support bracket is to provide additional support in the middle of a long tubular rail.

Long stainless steel tubes can experience increased deflection when the distance between supports becomes too large. Adding an intermediate bracket helps distribute the load across additional support points.

This can help provide:

• Better support for long tubular rails
• Reduced tube deflection
• More stable handrail installation
• Improved load distribution
• Cleaner alignment along the railing system

For long railing or handrail installations, installers should determine the number and spacing of support brackets according to the tube dimensions, installation conditions, and project requirements.

SS304 Stainless Steel Construction

AOYU manufactures the bracket from SS304 stainless steel, which provides a good combination of strength, corrosion resistance, and surface durability.

Furthermore, SS304 is suitable for architectural handrail and railing hardware applications, particularly where the support fitting needs to visually match stainless steel tubes and other railing components.

In addition, AOYU offers the bracket in several decorative finishes to suit different architectural styles.

Available for 38mm, 42.5mm and 50.8mm Tubes

Specifically, this bracket supports three common round tube diameters:

38mm

42.5mm

50.8mm

As a result, these sizes make the bracket suitable for a wide range of tubular handrail and railing systems.

Therefore, customers should select the correct model according to the outside diameter of the stainless steel tube.

For project orders requiring different dimensions, customized specifications can also be discussed.

Handrail and Railing Applications

The Through-Pipe Handrail Support Bracket can be used in multiple architectural and interior applications.

Railing Handrails

Suitable as an intermediate support for long stainless steel handrails used in railing systems.

In addition, the bracket supports the tube between main fixing points and helps maintain consistent alignment.

Stair Handrails

The bracket can be used with suitable round-tube stair handrails where additional support is required along longer sections.

Commercial Bar Foot Rails

It is also suitable as a bar foot rail support bracket for restaurants, hotels, bars and other commercial interiors.

For long foot rail tubes, intermediate brackets are particularly useful for providing additional support between the end brackets.

Wardrobe Hanging Rods

The fitting can also be applied to selected wardrobe hanging rails where a long stainless steel rod requires additional support in the center.

Curtain Rods

For suitable round tubular curtain rods, the bracket can provide an additional center fixing point to reduce sagging over wider openings.

Helps Reduce Long-Tube Sagging

One of the main advantages of an intermediate support bracket is its ability to reinforce longer tube spans.

Without sufficient support, a long handrail, bar foot rail or hanging rod may experience visible downward deflection.

Installing additional center handrail support brackets can help distribute the load more effectively and improve the stability of the entire tubular system.

This makes the bracket especially useful for commercial installations where longer stainless steel tubes are commonly used.

Multiple Surface Finishes

Standard finishes include:

Brushed
A satin stainless steel appearance suitable for modern railing and handrail systems.

Mirror
A polished reflective finish for decorative architectural applications.

Black
Suitable for contemporary railing, staircase and interior designs.

Other colors can also be customized according to customer or project requirements.

Custom finishes allow the bracket to match other railing components such as handrail tubes, glass clamps, posts and connectors.

Customization Available

Customization is available for distributors, railing manufacturers and project customers.

Custom options can include:

• Tube diameter
• Product dimensions
• Surface finish
• Color
• Packaging
• Branding
• OEM requirements

Customers can provide drawings, samples or project specifications for confirmation before production.

Fast Sample Dispatch

Standard samples can normally be dispatched within 3 days.

This allows customers to check:

• Tube compatibility
• Product dimensions
• Surface finish
• Installation structure
• Overall product quality

before confirming a larger production order.
