AISI 304 Glass Canopy Wall-to-Glass Connector

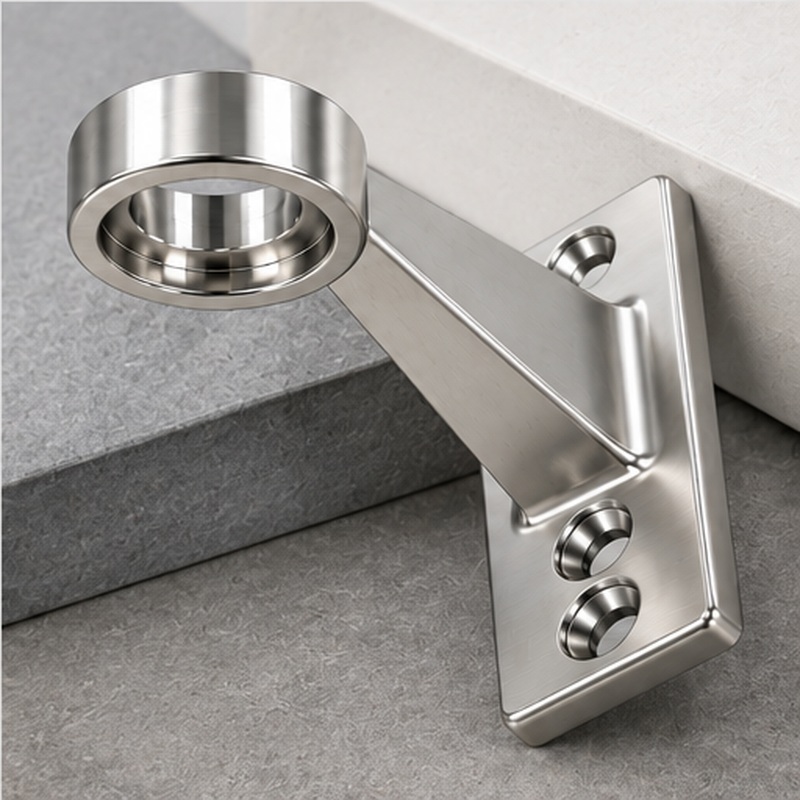

Product Description

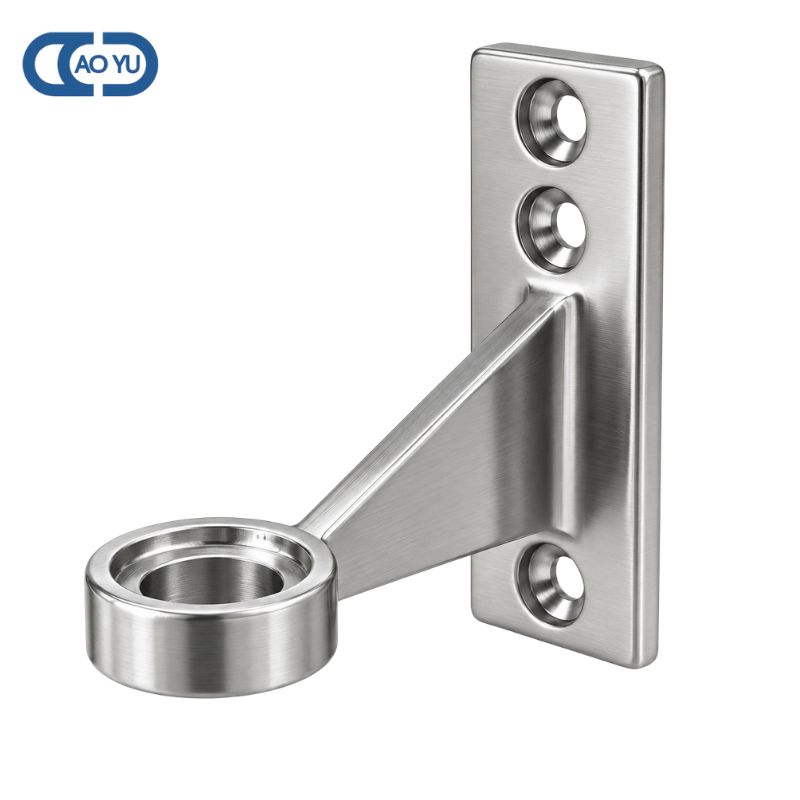

The glass canopy wall-to-glass connector provides a secure connection between the wall and glass panel in architectural canopy and awning systems. In addition, installers can use it for glass and polycarbonate structures above entrances, commercial buildings, basement entrances, smoking areas, and other architectural applications.

The connector uses AISI 304 stainless steel and a cast construction for professional installations. Moreover, installers mount the wall-side fitting with a stud and sleeve to create a stable connection between the building structure and the canopy glass.

Therefore, customers should select the appropriate glass holder according to the required laminated glass thickness.

AISI 304 Wall-to-Glass Connector Features

In addition, the wall-to-glass fitting combines a compact structure with the strength required for architectural canopy applications. Its stainless steel construction provides durability while maintaining a clean appearance that works well with modern glass structures.

The connector supports a maximum working load of 4,500 N (450 kg) in the Fx direction and 3,500 N (350 kg) in the Fy direction. However, the wall structure, anchors, glass configuration, fixing components, and installation conditions also affect the performance of the complete canopy system. 397-SS304

Compatible Glass Thickness

Depending on the laminated glass thickness, installers can combine the glass canopy wall-to-glass connector with different glass holders.

For example, we recommend the TF31 glass holder for 13.52 mm (6.2.6) and 17.52 mm (8.2.8) glass. However, for 21.52 mm (10.2.10) glass, customers need to select a suitable glass holder according to the project configuration.

The glass holder is supplied separately and should be selected according to the required glass thickness. 397-SS304

Wall-to-Glass Installation

The connector mounts directly to the wall using a stud and sleeve. This installation method creates the wall-side fixing point for the glass canopy system.

Before installation, customers should confirm the wall structure, glass thickness, compatible glass holder, fixing method, and overall canopy configuration. Proper component selection is especially important for project installations with different glass specifications.

Glass Canopy and Awning Applications

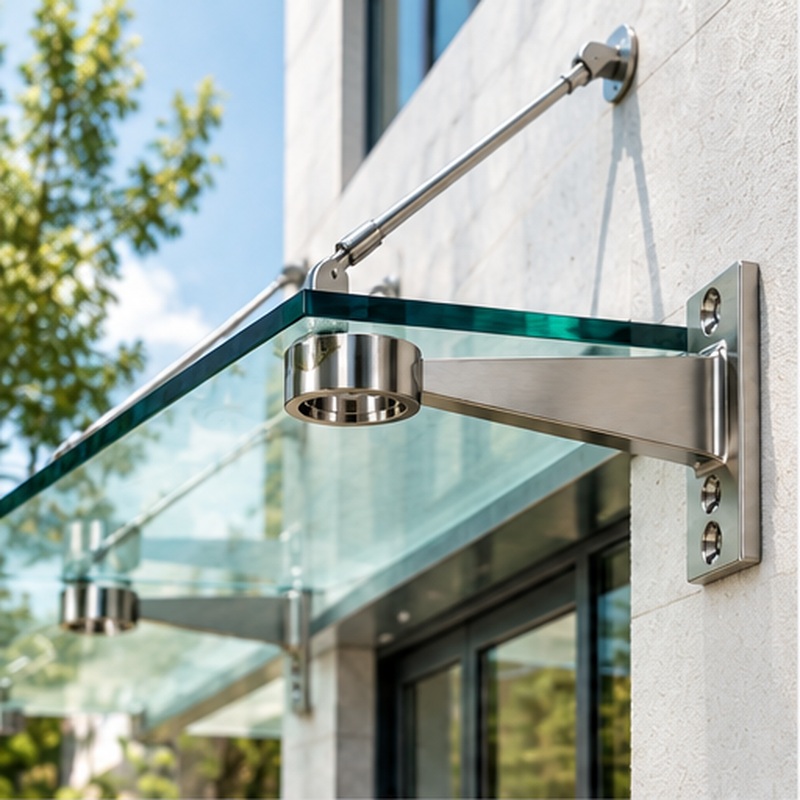

This canopy wall-to-glass connector is suitable for glass and polycarbonate canopies and awnings. Typical applications include entrance canopies for shops, commercial buildings, basement entrances, smoking areas, and other architectural structures. 397-SS304

Its stainless steel construction and compact design make it suitable for projects where structural support and a clean architectural appearance are both important.

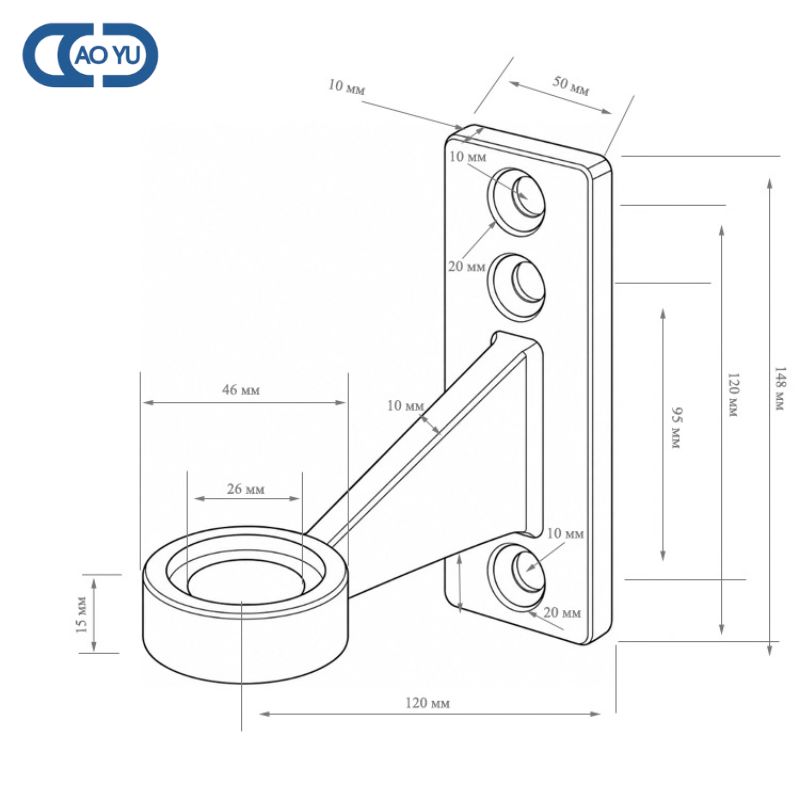

Technical Specifications

*For 21.52 mm glass, the corresponding glass holder must be selected separately. The glass holder itself is supplied separately.
