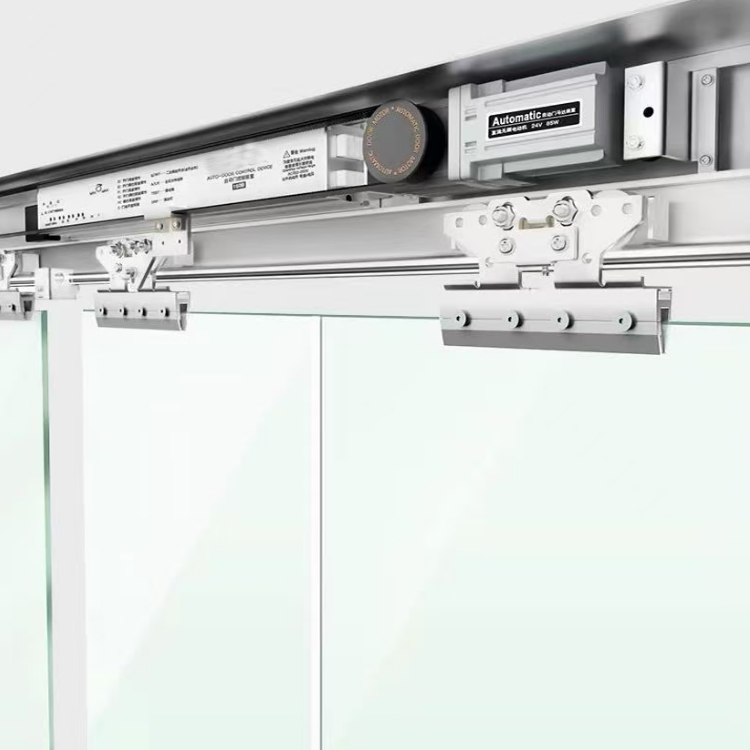

Automatic Sliding Glass Door System with Safety Sensor

The Automatic Sliding Glass Door System with Safety Sensor is designed for commercial entrances requiring convenient, automatic and reliable door operation.

The system uses sensor activation to automatically open the glass door when a person approaches. A safety sensor provides anti-pinch protection, helping detect people or obstacles in the door area and reducing the risk of the closing door trapping or contacting users.

It can be used with both framed and frameless glass doors and is suitable for 10–12mm glass, making it a practical automatic entrance solution for hotels, hospitals, retail stores, offices, shopping malls and other commercial buildings.

The system supports both single-leaf and double-leaf sliding door configurations, with a maximum door weight of 1 × 150kg for a single door or 2 × 120kg for double doors.

Product Specifications

Specification	Details
Product Name	Automatic Sliding Glass Door System with Safety Sensor
Door Type	Automatic Sliding Glass Door
Door Configuration	Single / Double Sliding Door
Glass Door Type	Framed / Frameless
Suitable Glass Thickness	10–12mm
Main Material	Aluminum / Alloy
Activation Method	Sensor Activation
Safety Function	Anti-Pinch Safety Sensor
Single Door Capacity	Up to 1 × 150kg
Double Door Capacity	Up to 2 × 120kg
Door Leaf Width	DW 650–1250mm
Door Opening Width	2500–4200mm
Power Supply	AC110V–220V ±10%
Frequency	50 / 60Hz
Application	Hotel / Hospital / Store / Office / Commercial Entrance
Warranty	2 Years
Quality Assurance	Replacement for Confirmed Quality Issues

Sensor-Activated Automatic Opening

The system is equipped with sensor activation technology.

When the sensor detects an approaching user, the operator automatically activates the sliding mechanism and opens the door.

This touch-free operation makes the system particularly suitable for locations with frequent pedestrian traffic, including:

• Hospitals
• Hotels
• Retail stores
• Shopping malls
• Office buildings
• Commercial entrances
• Public buildings

For hospitals and other environments where contact reduction is important, sensor-activated operation also provides a more convenient entrance experience.

Anti-Pinch Safety Sensor

Safety is an important consideration for any automatic sliding glass door system.

The safety sensor helps monitor the door area during operation. If a person or obstacle is detected in the closing path, the system can respond according to its configured safety operation, helping reduce the risk of pinching or accidental contact.

This makes the system particularly suitable for high-traffic commercial entrances where children, elderly users, patients, luggage carts or shopping carts may frequently pass through the doorway.

For Framed and Frameless Glass Doors

The automatic sliding door hardware can be configured for both:

Framed glass doors
and
Frameless glass doors

For frameless applications, the system is suitable for 10–12mm glass.

This flexibility allows distributors, glass door manufacturers and contractors to use the same type of automatic sliding door solution across different entrance designs.

Heavy-Duty Door Capacity

The system supports different door configurations depending on the project.

Single Sliding Door

Maximum recommended door weight:

1 × 150kg

Double Sliding Doors

Maximum recommended door weight:

2 × 120kg

This capacity makes the system suitable for relatively large commercial glass doors while maintaining automatic sliding operation.

Final door weight, dimensions and system configuration should be confirmed before installation.

Door Size Range

The system supports a door opening width of 2500–4200mm.

Individual door leaf width:

DW 650–1250mm

This allows the automatic sliding system to be configured for different commercial entrance sizes and architectural layouts.

AC110V–220V Power Supply

The system supports:

AC110V–220V ±10%, 50/60Hz

The wide input voltage range makes the system suitable for projects in different international markets with different electrical standards.

This is particularly useful for distributors and project buyers supplying automatic door systems to multiple countries.

Aluminum and Alloy Construction

The main system components use aluminum and alloy materials, providing a practical combination of strength, relatively low weight and durability.

The aluminum profile structure is also suitable for long automatic sliding door installations and helps create a clean appearance for modern commercial entrances.

Applications

The automatic sliding glass door system is particularly suitable for entrances requiring frequent and convenient access.

Typical projects include:

Hotels – for lobby and main entrance doors.
Hospitals – for convenient sensor-activated access.
Retail Stores – for high-frequency customer entrances.
Shopping Malls – for commercial entrance systems.
Office Buildings – for modern reception and entrance areas.
Commercial Buildings – for framed or frameless automatic glass doors.

2-Year Warranty

The automatic sliding glass door system comes with a 2-year warranty.

For confirmed product quality issues covered by the warranty, replacement can be provided according to the applicable warranty conditions.

For B2B buyers, this provides additional support when purchasing automatic door systems for distribution or commercial projects.
