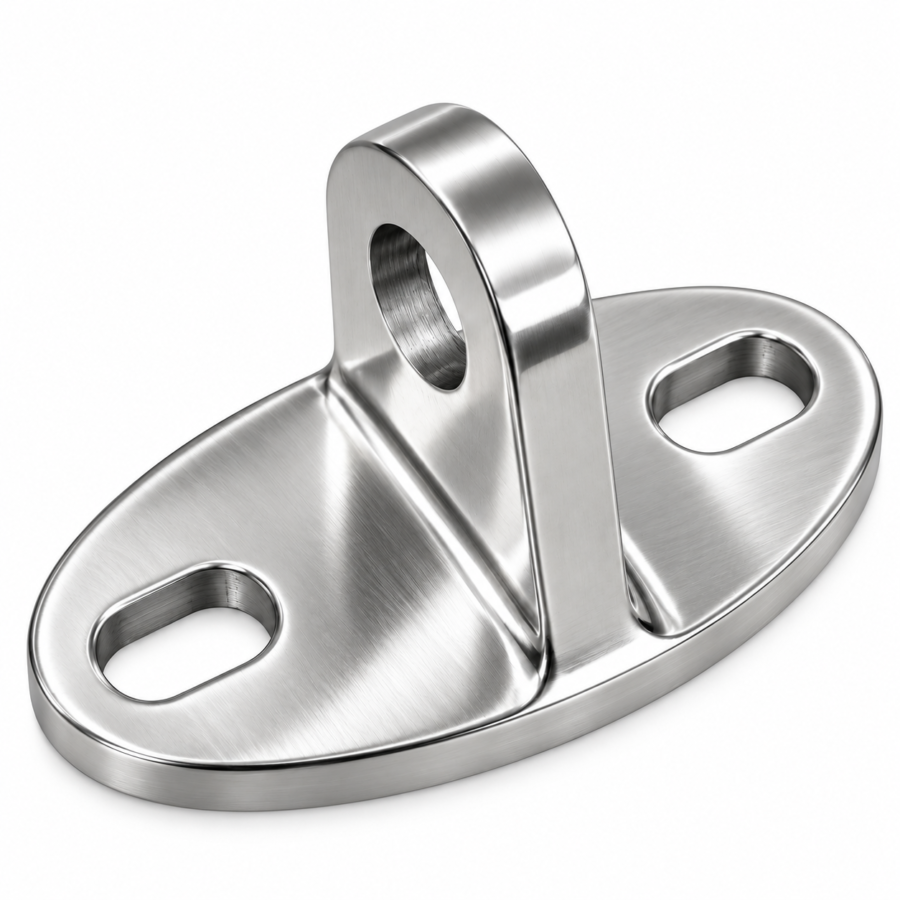

AISI 304 Glass Canopy Wall Mount for Tension Rod

Popis produktu

Wall-to-Rod Connection for Glass Canopy Systems

Tento glass canopy wall mount provides a secure connection between a tension rod and the building wall. Designed for architectural glass canopy and awning systems, this fitting helps transfer loads from the supporting rod to the wall structure.

Made from AISI 304 stainless steel, the fitting combines strength, corrosion resistance, and a polished appearance. Its PSS polished surface provides a clean architectural finish for modern glass installations.

The wall mount uses an M16 stud for installation and works with the 385-1.8M tension rod. This combination creates a reliable wall-to-rod connection for glass canopies installed above building entrances, shops, and other architectural spaces.

Stainless Steel Canopy Wall Bracket Features

Tento glass canopy wall mount uses AISI 304 stainless steel for reliable performance in architectural glass applications. Its compact structure provides a practical connection point for the supporting tension rod.

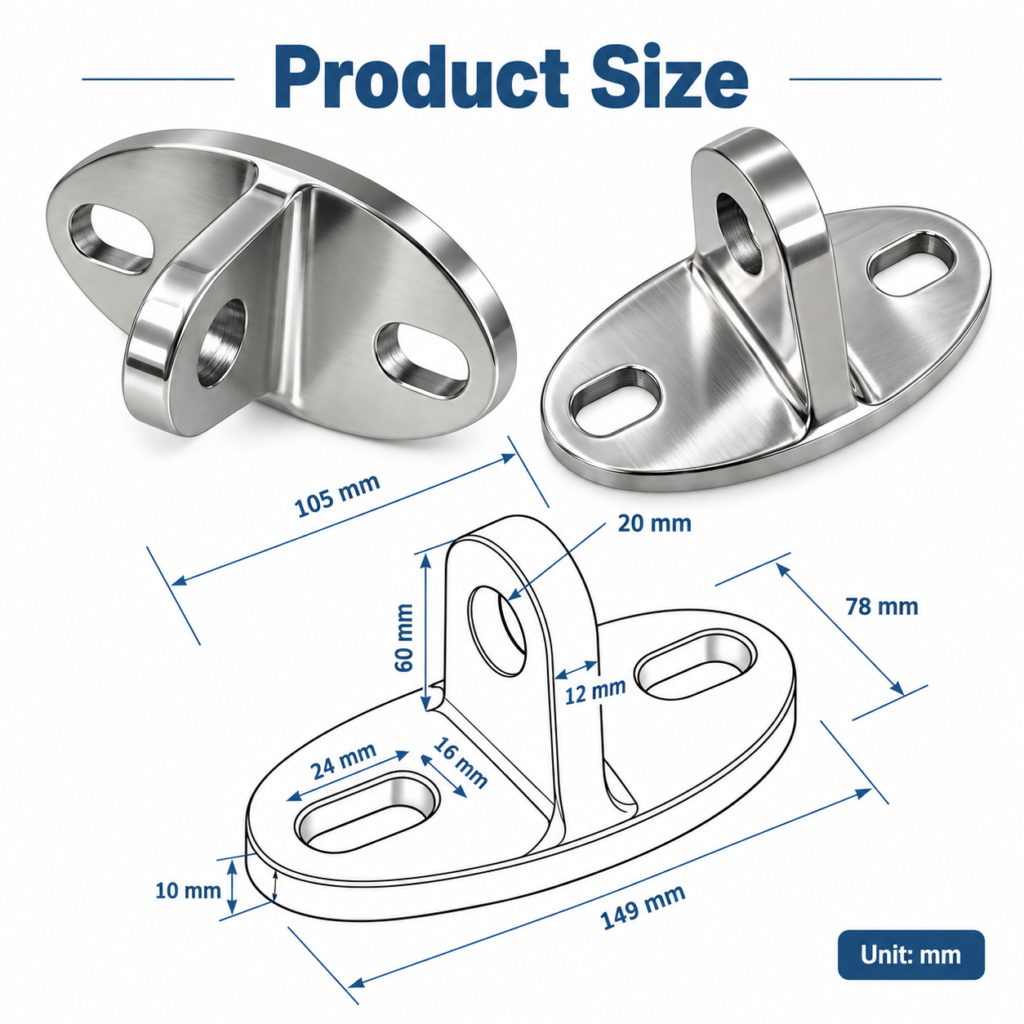

The fitting has a maximum working load of 7,000 N (700 kg) in the Fx direction and 7,000 N (700 kg) in the Fy direction. An M16 mounting connection also allows it to integrate with the corresponding canopy support components.

Glass Canopy Wall Mount Applications

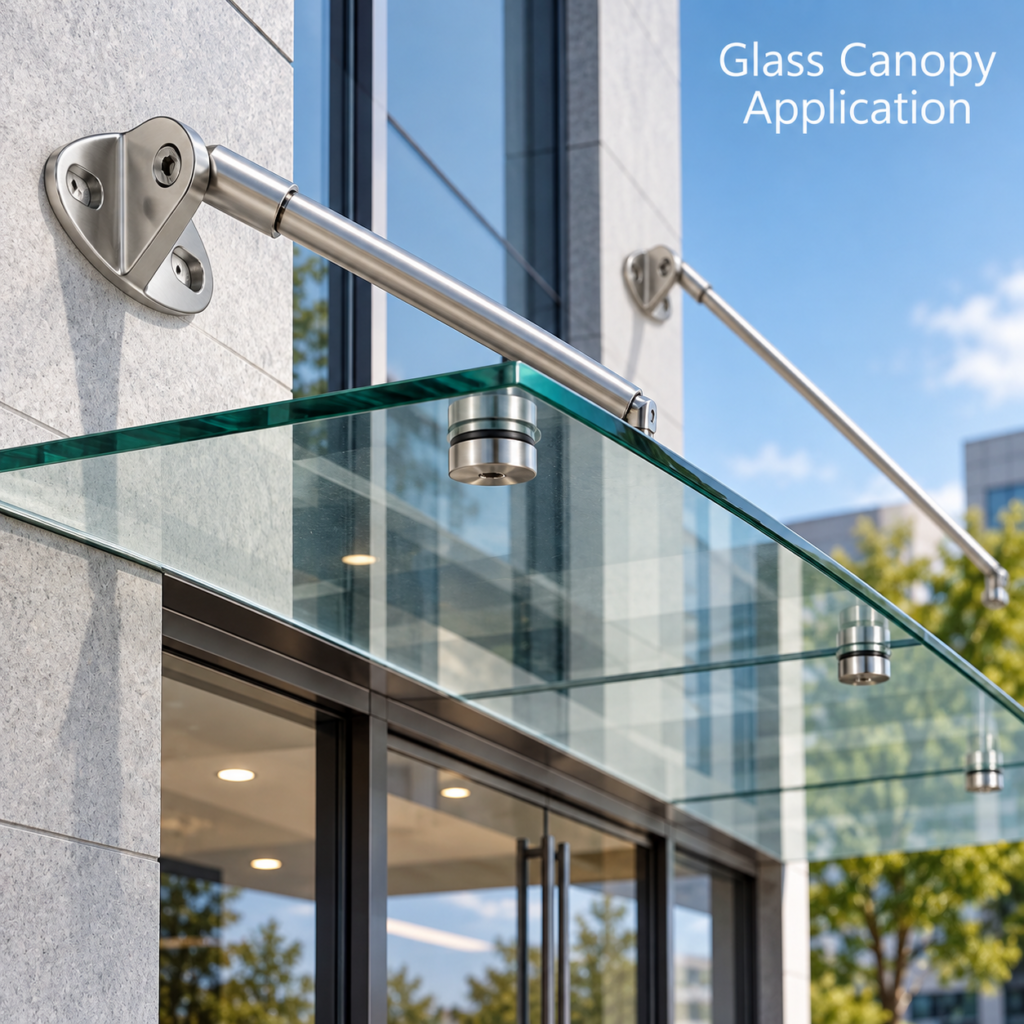

This fitting is suitable for glass canopies and awnings above building entrances, shops, and other architectural spaces. Installers can use it as the wall-side connection point of a tension rod support system.

When combined with the appropriate tension rod and glass-side fittings, the wall mount becomes part of a complete glass canopy support system. Its stainless steel construction and polished surface also complement modern architectural glass designs.

Compatible Glass Canopy Hardware

The 390-SS304 glass canopy wall mount works with the 385-1.8M tension rod to create a coordinated canopy support system.

For project orders, customers should confirm the required canopy configuration, mounting conditions, and compatible fittings before ordering.

Installation Support

AOYU provides an installation video for this product to help customers understand the correct assembly and installation method.
