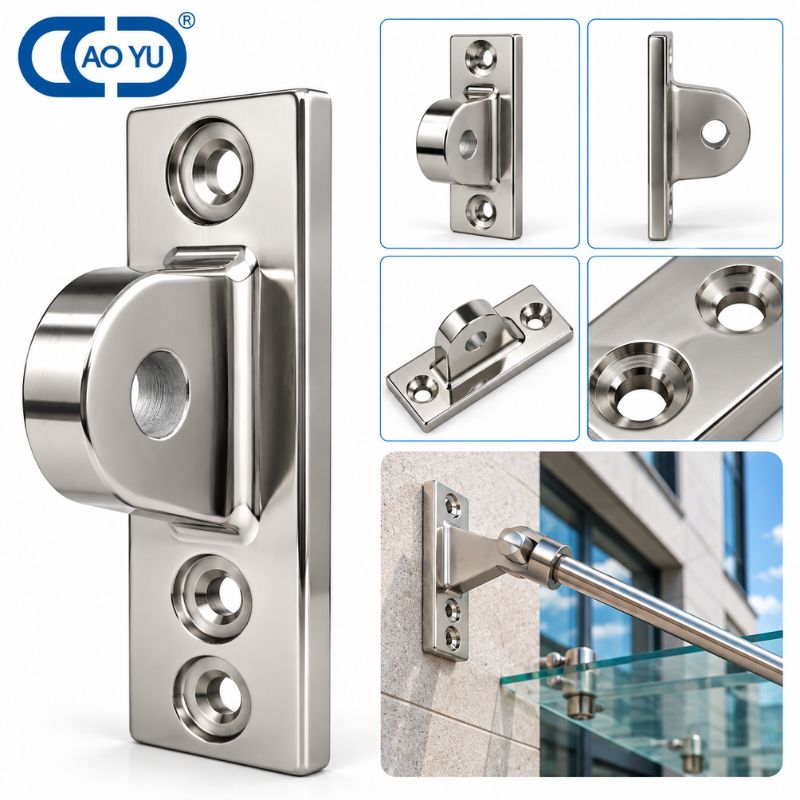

AISI 304 Glass Canopy Tension Rod Wall Fixing Bracket

Glass Canopy Tension Rod Wall Bracket Overview

Tento glass canopy tension rod wall bracket provides a secure wall-side fixing point for tension rod support systems. It connects the rod end to the building wall and helps support glass and polycarbonate canopies above entrances and other architectural spaces.

AOYU manufactures this bracket from AISI 304 stainless steel. The material offers strength and corrosion resistance for architectural hardware applications. In addition, its compact structure allows installers to integrate the fitting into modern canopy support systems without unnecessary visual complexity.

The bracket uses an M16 threaded rod connection. Therefore, customers should confirm the rod dimensions and mounting requirements before selecting compatible components.

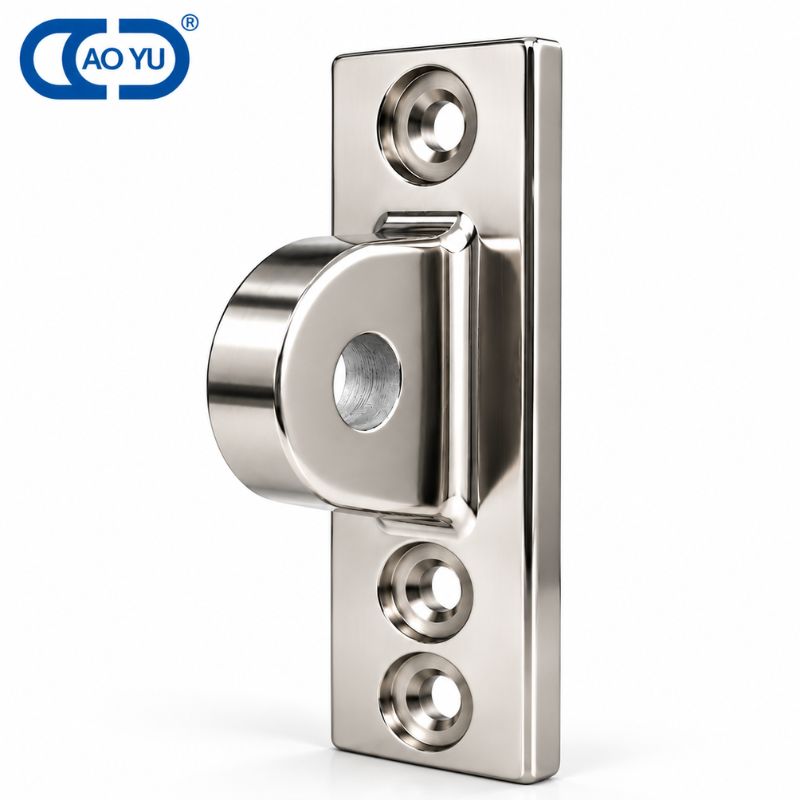

AISI 304 Stainless Steel Wall Bracket Features

The stainless steel construction provides a durable fixing solution for professional canopy installations. Moreover, the bracket connects the supporting rod to the wall through a dedicated mounting base.

Tento glass canopy tension rod wall bracket has a specified maximum working load of 7,000 N in the Fx direction and 7,000 N in the Fy direction.

However, these values describe the individual load directions of the component. They do not establish the load capacity of an entire canopy installation. The wall structure, anchors, rod configuration, and installation method also influence overall system performance.

As a result, installers should evaluate the complete support arrangement before installation.

M16 Tension Rod Wall Connection

M16 Threaded Rod Compatibility

The tension rod wall bracket accommodates an M16 threaded rod connection. This configuration allows installers to secure the rod end to the wall-side mounting component.

Before ordering, customers should verify the thread specification, rod-end design, and connection requirements. In particular, the selected components must match the intended canopy support arrangement.

Wall Mounting Considerations

Installers should first assess the wall material and mounting position. Next, they should select suitable fixing hardware according to the project requirements.

Additionally, the supporting wall and anchors must accommodate the loads transferred through the tension rod system. Proper installation planning helps maintain a reliable connection between the rod and the building structure.

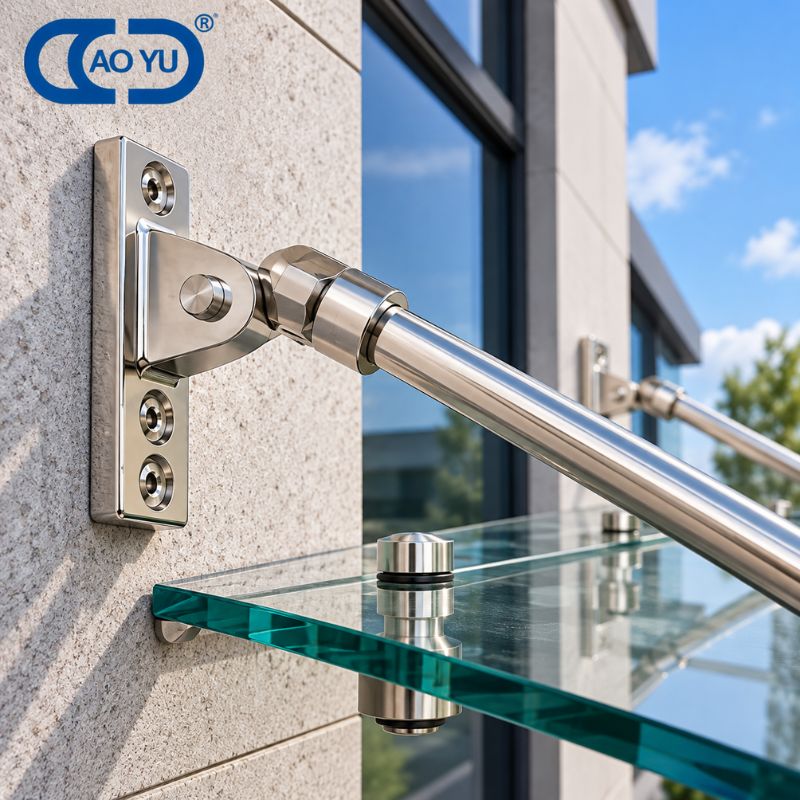

Glass Canopy Tension Rod Wall Bracket Applications

This wall fixing bracket serves glass and polycarbonate canopy and awning systems in architectural projects.

For example, installers can use it in support structures above retail entrances, basement entrances, smoking areas, and other building access points.

Furthermore, the AISI 304 construction makes the component a practical option for projects that require stainless steel canopy hardware.

The fitting forms one part of the supporting structure. Therefore, customers should evaluate the complete assembly, including the tension rod, wall connections, canopy panel, and related mounting hardware.

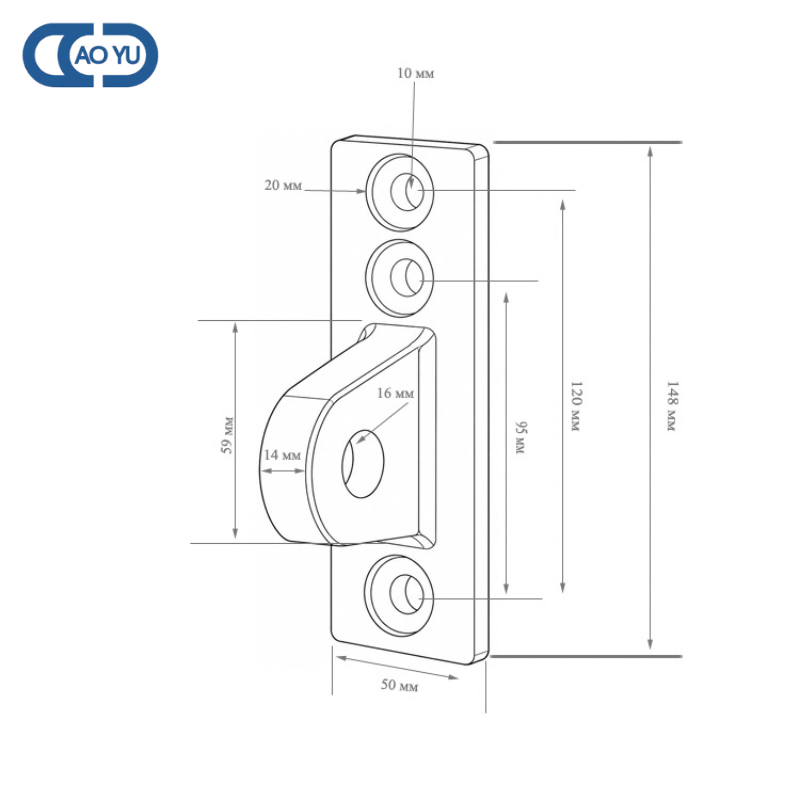

Technical Specifications

Note: The specified working loads apply to the component under its stated load directions. Actual system capacity depends on structural design, fixing hardware, and installation conditions.

B2B Supply and Project Compatibility

AOYU supplies stainless steel glass hardware for professional buyers, distributors, and architectural projects.

For tension rod wall bracket inquiries, customers can provide drawings, required quantities, rod specifications, and installation details. Our team can then review the information and help confirm the appropriate product configuration.

Finally, buyers should verify the complete canopy support system before placing an order, especially when the project involves specific structural loads or installation requirements.
