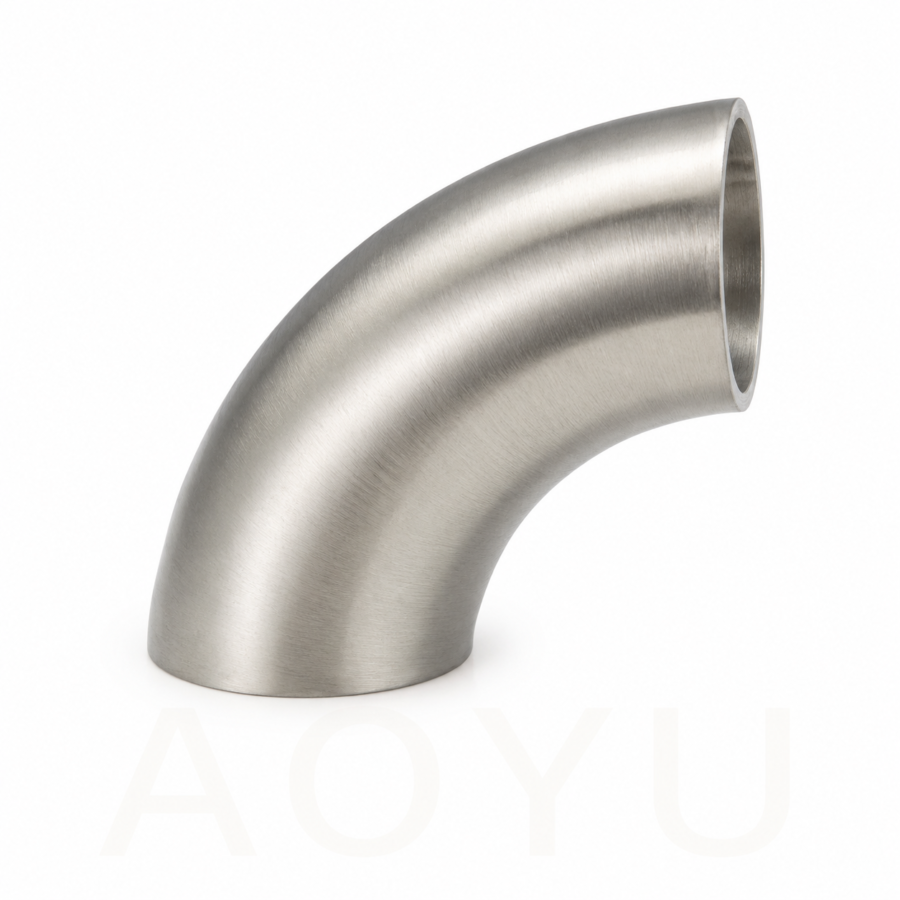

90° Stainless Steel Handrail Elbow Connector

Toto 90° Stainless Steel Handrail Elbow Connector is designed to connect two stainless steel handrail or railing tubes at a right angle.

It is commonly used in stainless steel railing, stair handrail and architectural tube systems where a clean 90-degree corner connection is required.

The fitting is typically installed by butt welding or sleeve-assisted welding. After welding, the joint can be ground and polished so that the elbow and adjoining stainless steel tubes create a smooth and visually seamless appearance.

The connector is available in SS201, SS304 and SS316 stainless steel, with common tube sizes including Φ38mm, Φ42mm and Φ51mm. Brushed, Mirror and Black finishes are available, while other colors can be customized.

Špecifikácie produktu

Špecifikácia	Details
Názov produktu	90° Stainless Steel Handrail Elbow Connector
Product Type	Handrail Elbow / Railing Tube Connector
Connection Angle	90°
Materiál	SS201 / SS304 / SS316 Stainless Steel
Common Tube Diameter	Φ38 / Φ42 / Φ51mm
Typical Tube Wall Thickness	1.0–2.0mm
Connection Method	Butt Welding / Sleeve-Assisted Welding
Post-Weld Processing	Grinding / Polishing / Blending
Standard Finish	Brushed / Mirror / Black
Vlastné farby	Dostupné
Použitie	Handrails / Railings / Stair Rails / Architectural Tubes
Main Function	90° Tube-to-Tube Corner Connection
Customization	Dostupné

90° Handrail Corner Connection

The main function of this 90 degree stainless steel handrail elbow is to connect two railing or handrail tubes at a right angle.

It is commonly used at:

• Handrail corners
• Stair railing turns
• Balcony railing corners
• Glass railing top rails
• Stainless steel guardrails
• Commercial handrail systems

The elbow provides the required 90° transition while allowing the completed handrail to maintain a smooth and continuous appearance.

Welded Tube-to-Tube Installation

This product is typically installed using welding.

Two common installation methods are available:

Butt Welding

The elbow and stainless steel tubes are aligned end-to-end and welded together.

After welding, the weld area is ground and polished to blend the connection with the surrounding tube surface.

Sleeve-Assisted Welding

Depending on the product structure and project requirements, an internal sleeve can also be used to assist tube positioning before welding.

This method can help maintain alignment between the elbow and adjoining handrail tubes during installation.

Grinding and Polishing for a Seamless Appearance

After welding, the connection area normally requires additional finishing.

The installer can use a grinder and polishing equipment to:

• Remove excess weld material
• Smooth the joint
• Restore the tube profile
• Blend the connection area
• Match the surrounding surface finish

When the welding and polishing process is completed correctly, the elbow and handrail tube can achieve a smooth, visually seamless appearance.

This is particularly useful for architectural railing projects where visible joints need to remain clean and unobtrusive.

Common Tube Sizes

The elbow is available for several commonly used stainless steel handrail tube diameters:

Φ38mm

Φ42mm

Φ51mm

Typical railing tube wall thickness is approximately:

1.0mm–2.0mm

The correct elbow specification should be selected according to both the outside diameter and wall thickness of the main handrail tube.

Custom dimensions can also be produced according to project requirements.

SS201, SS304 and SS316 Stainless Steel

The connector is available in three stainless steel grades.

SS201 Stainless Steel

SS201 is a more economical choice for suitable indoor applications where corrosion exposure is relatively low.

Nerezová oceľ SS304

SS304 is recommended for most standard handrail and railing projects because it provides a good balance of corrosion resistance, durability and cost.

Typical applications include indoor stair railings, offices, hotels and many standard architectural environments.

Nerezová oceľ SS316

SS316 provides better resistance to chloride-related corrosion and is recommended for:

• Prímorské prostredia
• Outdoor railing systems
• High-humidity areas
• High-salt environments
• Projects requiring higher corrosion resistance

Surface Finish Options

Standard finishes include:

Brushed
Suitable for satin-finished stainless steel handrail tubes.

Mirror
Designed to match polished stainless steel tubes and create a highly reflective appearance.

Black
Suitable for modern and contemporary railing systems.

Other colors and finishes can also be customized.

Finish Matching Is Important

When purchasing this stainless steel handrail elbow connector, the surface treatment should match the finish of the main railing tube.

Napríklad:

• Brushed elbow → Brushed tube
• Mirror elbow → Mirror-polished tube
• Black elbow → Matching black tube finish

If the polishing direction, surface texture or color does not match the main tube, the connection area may remain visually noticeable even after welding and polishing.

For projects requiring a highly integrated appearance, customers should confirm the tube finish before ordering.

Aplikácie

The 90° elbow connector is suitable for:

• Stainless steel handrails
• Glass railing top rails
• Stair railings
• Balkónové zábradlia
• Commercial guardrails
• Architectural tube systems
• Hotel and office railing projects
• Residential stainless steel railing systems

Customization Available

Customization can be provided according to project requirements, including:

• Tube diameter
• Wall thickness compatibility
• Trieda nehrdzavejúcej ocele
• Povrchová úprava
• Color
• Rozmery výrobku
• Balenie
• OEM requirements

Customers can provide tube specifications, drawings or samples for confirmation before production.
