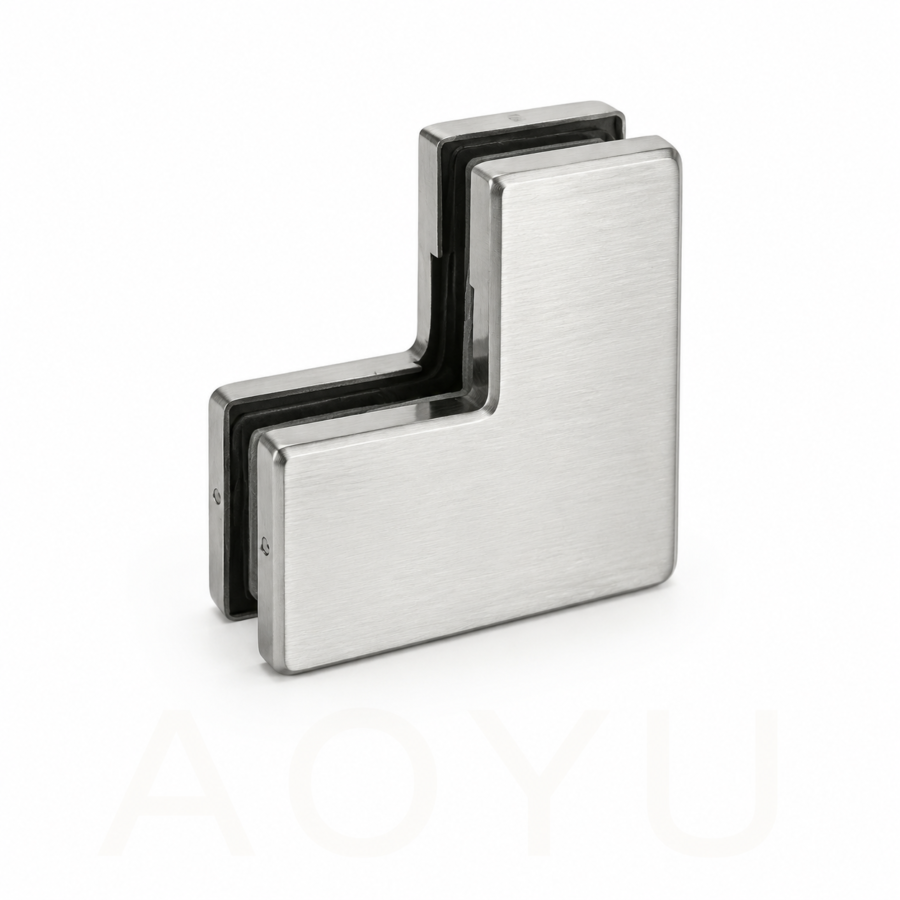

Small L-Shaped Overpanel & Sidelite Patch Connector for Glass Doors
The Small L-Shaped Overpanel & Sidelite Patch Connector for Glass Doors is designed to connect an upper fixed glass panel with an adjacent sidelite panel in frameless architectural glass systems. Its compact L-shaped 106 × 106mm design creates a neat corner connection between two fixed glass panels while keeping the visible hardware relatively small. The fitting is […]
Certifications
Ten Small L-Shaped Overpanel & Sidelite Patch Connector for Glass Doors is designed to connect an upper fixed glass panel with an adjacent sidelite panel in frameless architectural glass systems.
Its compact L-shaped 106 × 106mm design creates a neat corner connection between two fixed glass panels while keeping the visible hardware relatively small.
The fitting is suitable for 10–12mm tempered glass and is commonly used around frameless glass entrances, fixed glass partitions and door surrounds where the overpanel and sidelite require a stable connection.
Standard finishes include Brushed, Mirror and Matte Black, with custom colors available for project requirements.
Dane techniczne produktu
| Specyfikacja | Details |
| Nazwa produktu | Small L-Shaped Overpanel & Sidelite Patch Connector |
| Product Type | Fixed Glass Patch Connector |
| Shape | Small L-Shaped |
| Size | 106 × 106mm |
| Main Function | Connects Overpanel to Sidelite Glass |
| Glass Configuration | Fixed Glass to Fixed Glass |
| Suitable Glass Thickness | 10–12mm |
| Glass Type | Tempered Glass |
| Installation Area | Upper Corner / Door Surround |
| Zakończenie | Brushed / Mirror / Matte Black |
| Kolory niestandardowe | Dostępne |
| Zastosowanie | Frameless Glass Doors / Glass Partitions / Fixed Glass Panels |
| Customization | Dostępne |
Overpanel-to-Sidelite Glass Connection
The main purpose of this overpanel sidelite patch connector is to join two fixed glass panels at the upper corner of a frameless glass installation.
One section connects to the overpanel, while the other connects to the sidelite, creating an L-shaped junction between the two glass panels.
This makes it different from pivot patch fittings because this product is mainly designed for fixed glass connection rather than door rotation.
Compact 106 × 106mm L-Shaped Design
The connector measures:
106 × 106mm
Its compact L-shaped geometry makes it suitable for applications where installers want reliable glass support without using an oversized patch fitting.
The small footprint also helps maintain the clean visual appearance associated with frameless glass entrance systems.
Suitable for 10–12mm Tempered Glass
This fitting is designed for:
10mm tempered glass
12mm tempered glass
The exact glass thickness, cut-out and installation dimensions should be confirmed before glass processing.
For project installations, the connector dimensions should be coordinated with the complete overpanel and sidelite layout.
Fixed Glass Applications
Unlike top pivot fittings used on moving door panels, this connector is primarily intended for fixed glass panels.
Typical applications include:
- Overpanel and sidelite connections
- Frameless glass entrance surrounds
- Fixed glass partitions
- Commercial glass storefront systems
- Szklane ścianki działowe do biur
- Hotel entrances
- Interior architectural glass systems
This positioning helps distinguish the fitting from moving-door patch hardware.
Surface Finish Options
The fitting is available in:
Brushed
Provides a satin stainless steel appearance suitable for modern commercial glass installations.
Mirror
Creates a polished reflective surface for matching mirror-finished architectural hardware.
Matowa czerń
Suitable for contemporary frameless glass systems and black hardware designs.
Kolory niestandardowe
Other colors and surface finishes can be produced according to project or customer requirements.
Clean Frameless Appearance
Because this connector is positioned around the upper corner of fixed glass panels, appearance is especially important.
The compact shape helps reduce visual obstruction while maintaining a clear mechanical connection between the overpanel and sidelite.
For projects using several patch fittings, matching the finish across connectors, door fittings and handles can help create a more consistent overall appearance.
Najczęściej zadawane pytania
1. What is a Small L-Shaped Overpanel & Sidelite Patch Connector used for?
It connects an upper fixed glass panel with an adjacent sidelite panel in frameless glass door and partition systems. The L-shaped design helps create a clean corner connection between two fixed glass sections.
2. What glass thickness is suitable for this L-shaped patch connector?
This connector is suitable for 10–12mm tempered glass. Before installation, confirm the glass thickness, cut-out dimensions and panel layout to ensure proper alignment.
3. What is the size of the Small L-Shaped Overpanel & Sidelite Patch Connector?
The standard size is 106 × 106mm. Its compact dimensions make it suitable for frameless glass systems where a small, neat connector is preferred.
4. Where can this overpanel and sidelite connector be installed?
It is commonly used in frameless glass entrances, office partitions, hotel interiors, retail glass systems and other fixed glass installations where an upper panel meets a side panel.
5. What finishes are available for this patch connector?
Common finishes include Brushed, Mirror and Matte Black. In addition, custom colors and selected surface treatments can be produced for suitable project and OEM orders.
