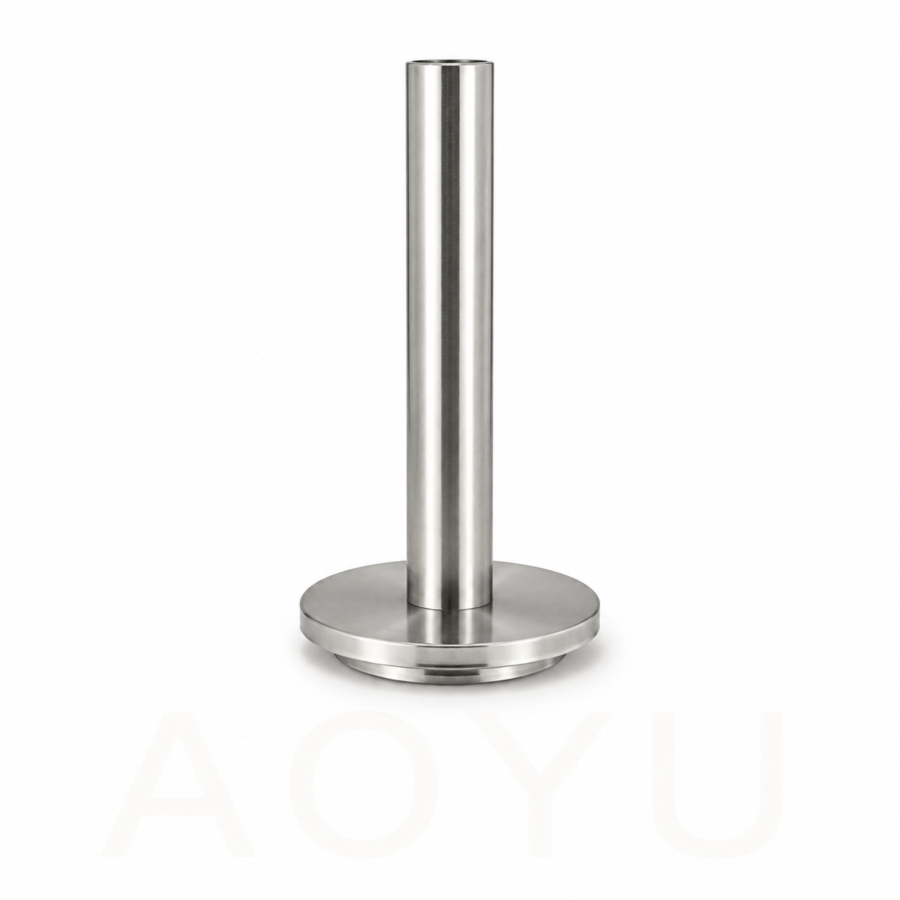

Stainless Steel Post-Mounted Handrail Support Bracket

El Stainless Steel Post-Mounted Handrail Support Bracket is designed to connect and support a round handrail tube above a stainless steel railing post.

The lower section fits onto or connects with the railing post, while the upper support section carries the horizontal handrail tube. This creates a strong and clean connection between the vertical railing post and the top handrail.

The bracket is available in SS201, SS304 and SS316 stainless steel and can be supplied for several common round tube diameters, including 25.4mm, 31.8mm, 38.1mm, 42.5mm and 50.8mm.

Standard finishes include Brushed, Mirror and Black. Other finishes and colors can also be customized according to project requirements.

Especificaciones del producto

Post-Mounted Handrail Support

Esto post mounted handrail bracket is installed between a vertical railing post and the horizontal handrail tube.

The lower section connects with the post, while the upper section supports the handrail.

This structure helps create a stable connection and keeps the handrail correctly positioned above the railing post.

Typical applications include:

• Sistemas de barandales de vidrio
• Stainless steel railings
• Stair handrails
• Barandillas de balcón
• Commercial balustrades
• Architectural handrail systems

Available for Multiple Round Tube Sizes

The bracket is available for several commonly used stainless steel round tube diameters:

25.4mm
31.8mm
38.1mm
42.5mm
50.8mm

The correct bracket size should be selected according to the outside diameter of the railing post and handrail tube.

Custom dimensions can also be produced for suitable project requirements.

SS201, SS304 and SS316 Options

Three stainless steel grades are available.

SS201 Stainless Steel

SS201 provides a more economical option for suitable indoor applications where corrosion resistance requirements are relatively moderate.

Acero inoxidable SS304

SS304 is a practical choice for most normal railing and handrail applications, offering a good balance of strength, corrosion resistance and cost.

It is commonly suitable for indoor projects and many standard architectural environments.

Acero inoxidable SS316

SS316 provides better resistance to chloride-related corrosion and is recommended for more demanding environments such as:

• Zonas costeras
• Outdoor railing systems
• High-humidity locations
• Projects requiring higher corrosion resistance

Material selection can be confirmed according to the installation environment and project specification.

Material Certificates Available

For B2B and project orders, material certificates can be provided upon request.

This can help customers verify the specified stainless steel grade and support project documentation or import requirements where applicable.

Customers should confirm any specific documentation requirements before production or shipment.

Multiple Surface Finishes

Standard finishes include:

Brushed
Provides a satin stainless steel appearance suitable for modern railing systems.

Mirror
Provides a polished reflective finish that matches mirror-polished stainless steel tubes.

Black
Suitable for contemporary railing and architectural designs.

Other colors and surface treatments can also be customized.

Customization Available

Customization options can include:

• Tube diameter
• Dimensiones del producto
• Grado de acero inoxidable
• Acabado de la superficie
• Color
• Empaque
• Identidad de marca
• OEM requirements

Customers can provide drawings, tube specifications or samples for confirmation before production.

Fast Sample Dispatch

Standard samples can normally be dispatched within 3 days.

This allows customers to confirm:

• Tube compatibility
• Dimensiones
• Material
• Acabado de la superficie
• Installation structure
• Calidad del producto

before placing a bulk order.
