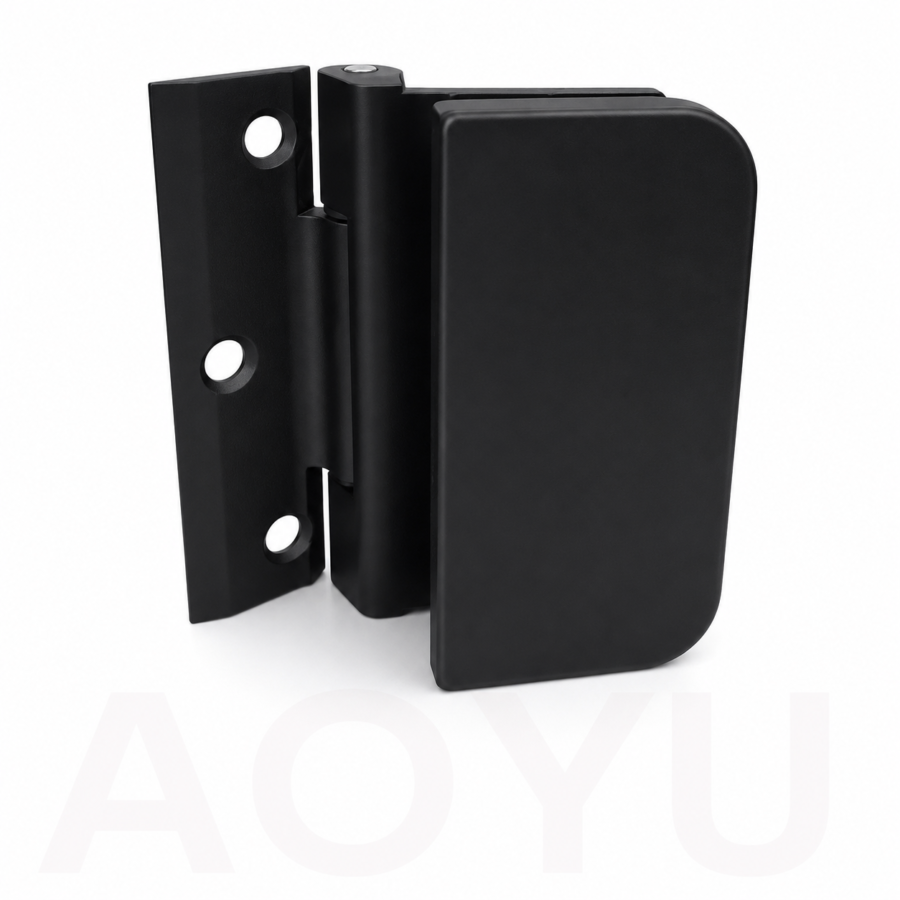

Aluminum Glass Door Hinge for Single-Action Swing Doors
The Aluminum Glass Door Hinge for Single-Action Swing Doors is designed for manually operated frameless tempered glass doors that open in one direction. Made from aluminum alloy, the hinge provides a simple mechanical connection between the glass door and the supporting wall or frame structure. It is suitable for 8–10mm tempered glass, with a recommended capacity […]
Certifications
Tento Aluminum Glass Door Hinge for Single-Action Swing Doors is designed for manually operated frameless tempered glass doors that open in one direction.
Made from aluminum alloy, the hinge provides a simple mechanical connection between the glass door and the supporting wall or frame structure. It is suitable for 8–10 mm tvrzené sklo, with a recommended capacity of up to 45kg per two hinges, subject to door dimensions and installation conditions.
Its simple mechanical design makes it suitable for sauna rooms, kitchens, dining rooms, studies, bedrooms, offices and other residential or commercial glass door applications.
Standard colors include Silver and Matte Black, while additional colors and selected dimensions can be customized for project requirements.
Technické parametry výrobku
| Specifikace | Details |
| Název výrobku | Aluminum Glass Door Hinge for Single-Action Swing Doors |
| Product Type | Single-Action Glass Door Hinge |
| Materiál | Hliníková slitina |
| Glass Type | Tempered Glass |
| Tloušťka skla | 8–10mm |
| Door Type | Single Swing Glass Door |
| Door Movement | Single Action / One-Way Swing |
| Recommended Capacity | Up to 45kg with 2 Hinges* |
| Instalace | Wall-to-Glass |
| Self-Closing Function | No |
| Spring Mechanism | No |
| Damping Function | No |
| Standard Colors | Silver / Matte Black |
| Vlastní barvy | Dostupné |
| Customization | Acceptable |
| Aplikace | Sauna / Kitchen / Dining Room / Study / Bedroom / Office |
| Exterior Application | Suitable configurations should be confirmed according to environment |
*Actual load capacity depends on glass width, height, hinge spacing, fixing structure and installation quality.
Made for Single-Action Glass Doors
This hinge is specifically designed for single-action swing glass doors.
The door opens in one intended direction and is manually operated. The hinge does not contain a spring, hydraulic closer or automatic return mechanism.
This makes the design suitable for projects where buyers prefer a straightforward hinge system without additional closing mechanisms.
Typical uses include:
- Sauna glass doors
- Interior frameless glass doors
- Skleněné dveře do kanceláře
- Kitchen glass doors
- Dining room doors
- Bedroom glass doors
- Study room doors
- Glass partition entrances
Často kladené otázky
1. What is an Aluminum Glass Door Hinge for Single-Action Swing Doors used for?
It is designed for frameless tempered glass doors that open in one direction. The hinge suits interior applications such as offices, kitchens, bedrooms, dining rooms, studies and selected sauna glass doors.
2. What glass thickness can this single-action aluminum hinge support?
This hinge is suitable for 8–10mm tempered glass. Before installation, confirm the glass thickness, door dimensions and fixing surface to ensure proper compatibility.
3. How much weight can two Aluminum Glass Door Hinges support?
A standard pair of two hinges can support a glass door weighing up to approximately 45kg. However, door height, width, hinge spacing and installation conditions also affect the actual load capacity.
4. Does this single-action glass door hinge include a spring or self-closing mechanism?
No. This model uses a simple mechanical hinge structure and does not include a spring, hydraulic damping or automatic self-closing function. The glass door operates manually.
5. Can the color or specification of the Aluminum Glass Door Hinge be customized?
Yes. Standard colors include Silver and Matte Black. In addition, custom colors and selected specifications can be produced for suitable OEM and project orders.
