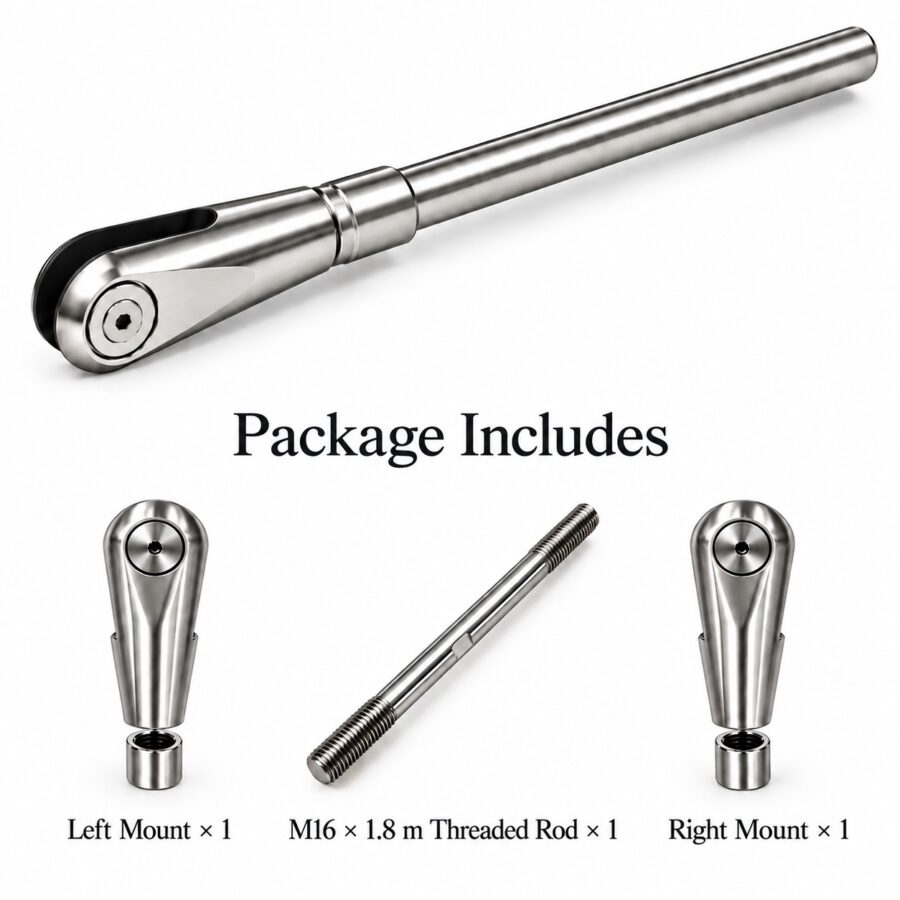

M16 Glass Canopy Tension Rod, 1.8 m, 304 Stainless Steel
Product Description M16 Glass Canopy Tension Rod The M16 glass canopy tension rod is designed to provide reliable support and fastening for glass canopies and awnings. Made from Stainless Steel 304, it offers strong tensile performance, corrosion resistance, and long-term durability for architectural glass installations. The rod features an M16 × 2 mm thread at […]
Descrierea produsului
M16 Glass Canopy Tension Rod
Acest M16 glass canopy tension rod is designed to provide reliable support and fastening for glass canopies and awnings. Made from Stainless Steel 304, it offers strong tensile performance, corrosion resistance, and long-term durability for architectural glass installations.

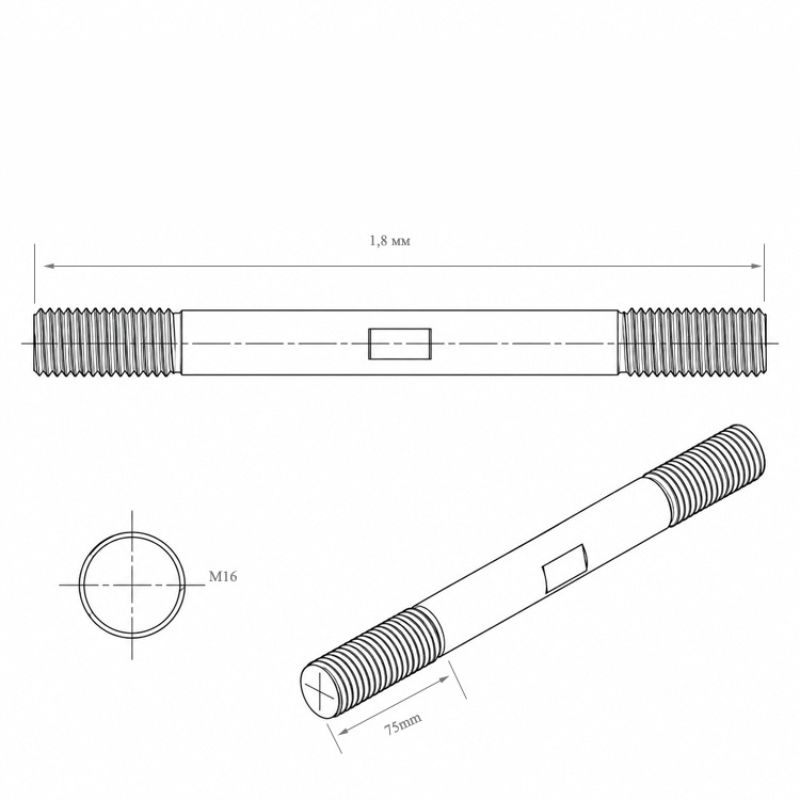

The rod features an M16 × 2 mm thread at both ends, with a 75 mm threaded section on each side. Its total length is 1.8 m, making it suitable for a wide range of commercial and residential canopy projects.

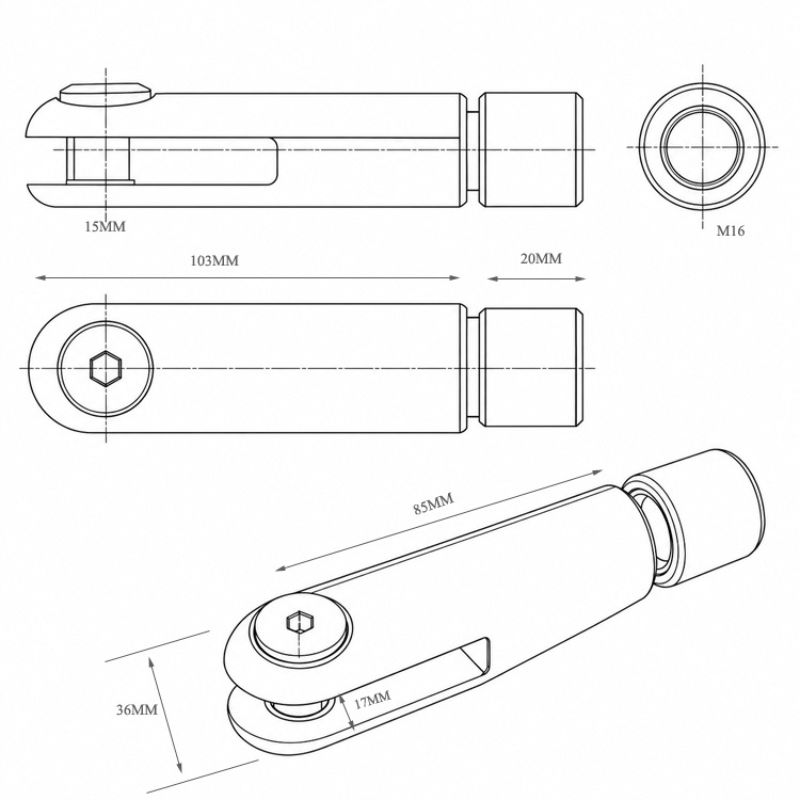

During installation, one end is secured to the wall using a wall mounting fitting, while the other end connects to the glass through a dedicated canopy fitting. This structure helps create a stable connection between the wall, support rod, and glass panel.
| Specificație | Details |
|---|---|
| Material | Oțel inoxidabil 304 |
| Rod Size | M16 |
| Thread | M16 × 2 mm |
| Thread Length | 75 mm on each end |
| Overall Length | 1.8 m |
| Effective Cross-Sectional Area | 52.3 mm² |
| Maximum Allowable Stress | 180 MPa |
| Maximum Tensile Load | 9,500 N (approx. 950 kg) |
| Aplicație | Glass canopies and awnings |
Stainless Steel Glass Canopy Support Rod Features
Made from Oțel inoxidabil 304, this canopy support rod provides good strength and resistance to corrosion. Therefore, it is suitable for long-term use in many architectural glass applications.
The stainless steel surface also provides a clean and professional appearance. In addition, the M16 threaded ends allow installers to connect the rod securely with compatible wall fittings and glass canopy hardware.
Glass Canopy Rod Applications
This stainless steel rod is suitable for use in glass canopy systems, glass awnings, entrance canopies, commercial building entrances, and architectural glass projects.
Installers can combine the rod with wall mounts, glass fittings, and other canopy accessories to create a complete support system. As a result, the finished installation provides reliable support and maintains a clean architectural appearance.
Professional Glass Canopy Hardware
AOYU provides glass canopy hardware for professional B2B projects, including tension rods, wall fittings, glass connectors, clamps, and related accessories.
OEM and ODM services are also available for customers who require custom dimensions, surface finishes, or project-specific hardware solutions.n rod, wall, and glass. It is suitable for professional installation in glass canopy and glass awning systems.
